Currently, the pollution generated by the textile industry in the area of dyes is a major concern at the national and international levels. One of the proposals to mitigate this problem is membrane technology. In particular, those based on composite materials and polymers of a biodegradable nature have been the subject of study in recent decades as a replacement for conventional polymer-based membranes for water treatment, due to the growing demand for sustainable technologies for this application. This work addresses the preparation and use of polymeric nanocomposites using polylactic acid and titanium dioxide (TiO2) nanoparticles for their application as biodegradable membranes. The addition of these nanoparticles in the polymer matrix improves thermal stability and provides photocatalytic properties, allowing the removal of dyes, with potential application for wastewater treatment.
biodegradable polymers, dye removal, photodegradation.
Access to clean water is fundamental to development and human health. Nevertheless, human activity has altered water quality, and the search for solutions in this area is one of the main concerns on a global scale (Zhang et al., 2022; Mojiri et al., 2023). Among some of the pollutants in water, there are complex chemicals and ionizing agents that are widely used as dyes (Kumar et al., 2022).
One of the factors that limits the decomposition of these dyes when they are released into wastewater is the light-refracting chemicals that hinder the natural decomposition and degradation of these compounds (Blanchard and Mekonnen, 2022; Mahmood et al., 2022). In recent years, polymeric membranes have received considerable interest in solving various environmental problems, such as contaminant removal, gas separation, and water purification. Their versatility of morphology and chemical structure makes them an excellent technology for various applications in environmental sciences.
The advancement of these depends on the manufacture of membranes with high permeability and selectivity, resistance to dirt, and stability in aggressive environments. Membrane manufacturing methods have evolved over the past ten years, adopting processes that allow the porosity, thickness, and surface characteristics of the membrane to be modified.
Methods such as phase inversion, electrospinning, layer-by-layer assembly and 3D printing are innovative manufacturing processes that have made it possible to create membranes with custom shapes and functionalities and improve their performance (Zhang et al., 2022; Thiam et al., 2022; Ren et al., 2023; Karki et al., 2024; Luo et al., 2024; Wang and Wei, 2024).
In addition, the performance of polymeric membranes has been increased by functionalization techniques, such as surface modification, addition of functional nanomaterials, polymer mixing, and compound formation, which allow for selective separation, antifouling properties and greater mechanical stability (Kim et al., 2022). These characteristics, together with a longer useful life, good mechanical, thermal, and chemical stability, low cost, and minimal maintenance, have made them a new and promising method for wastewater treatment (Mansoori et al., 2020).
One of the most promising materials for the manufacture of new polymeric membranes is polylactic acid (PLA). Due to its qualities, such as durability, mechanical strength, and transparency, PLA has established itself as one of the most promising biodegradable polymers in various industries, such as packaging, automotive, and agriculture. It is a hydrophobic polymer due to the -CH3 side groups present in its chemical structure. In addition, it is resistant to hydrolysis due to the steric shielding effect of the methyl side groups.
PLA is obtained from the lactic acid (LA) monomer, a linear aliphatic thermoplastic polyester. LA exists in two forms, L-LA and D-LA, which are mirror-image isomers of each other due to the asymmetric carbon atom in their molecule. Their physicochemical characteristics are similar; the only distinction lies in the rotation of chemically generated plane-polarized light (Jem and Tan, 2020; Taib et al., 2023). However, stereochemistry, as well as the distribution and proportion of L-LA and D-LA, directly influences the mechanical and thermal characteristics of the polymer, molecular weight, and degradation time.
For example, poly (D, L-lactide) (PDLLA) is an amorphous polymer, whereas the polymer obtained from L-LA is semicrystalline (Yuanfeng and Farmahini, 2016; Taib et al., 2023). In the case of semicrystalline PLA, this polymer is mainly composed of L-LA blocks. A very relevant property of polymeric materials is the glass transition temperature (Tg), which indicates the temperature at which the amorphous areas of PLA polymers soften from their glassy state. Tg ranges from 50 to 70 °C for both amorphous and semicrystalline PLAs.
The present work studied the effect of TiO2 incorporation into the PLA membrane on the photocatalytic performance in the degradation of methylene blue (MB). To this end, membranes based on polymeric nanocomposites with different concentrations of TiO2 were prepared using the phase inversion method. The materials were characterized by Fourier-transform infrared (FTIR), X-ray diffraction (XRD), thermogravimetric analysis (TGA), differential scanning calorimetry (DSC), and scanning electron microscopy (SEM). The physicochemical properties of the materials were related to the photocatalytic activity in the degradation of MB at room temperature under UV light.
The PLA used was provided by Prospector and obtained from IngeoTM 3001D. Titanium oxide (TiO2) particles were synthesized following the reported methodology (Romero-Galarza et al., 2014). All solvents used were of high purity. The synthesis of PLA membranes by the phase inversion method was performed by dissolving 1.5 g of PLA pellets in 10 ml of N, N-dimethylformamide (DMF), stirring at 250 rpm at a temperature of 120 °C for 20 min to obtain a homogeneous mixture of the solution.
The solution was poured onto a glass plate before being placed in a coagulation bath for 24 h. To prepare the membrane with TiO2, the same procedure was performed by adding a certain amount of TiO2, 1% (15 mg), 2% (30 mg) and 4% (60 mg) by weight, to the solution under the same experimental conditions.
The SEM micrographs of the membranes were obtained with a JEOL JSM-7401F equipment. For FTIR analysis, a Nicolet iS10 device with a universal attenuated total reflectance (UATR) accessory was used. IR spectra were measured in a range of 4 000 cm-1 to 400 cm-1 with a resolution of 4 cm-1 and 30 scans. The analysis of membrane crystallinity was performed by XRD with an X PanAnalytical Empyrean equipment with Cu kα radiation (λ= 1.54 Ǻ) in a range of 10°-80°, at a scanning speed of 0.026° s-1.
The thermal stability of the membrane was determined through TGA with a Perkin Elmer Pyris 8000 device at a heating rate of 20 °C min. The samples were scanned in a temperature range of 30 °C to 800 °C, using nitrogen as purge gas. The thermal properties of the membrane were determined by differential scanning calorimetry with a Perkin Elmer Diamond DSC, from -5 °C to 200 °C, at a heating rate of 10 °C min, maintained for 1 min at 200 °C and cooled from 200 °C to -5 °C at a cooling rate of 10 °C min, maintained for 1 min at -5 °C, and a second heating from -5 °C to 200 °C at 10 °C min, the entire analysis in a gaseous nitrogen atmosphere.
The curves shown correspond to the second heating. The glass transition temperature (Tg) and the melting temperature (Tm) were determined according to the DSC results. The degree of crystallinity (Χc) was estimated by the value of the enthalpy of fusion, according to the following equation: 1). Where: ∆Hm and ∆H⁰m represent the experimentally obtained enthalpy of fusion and that of 100% crystalline PLA, respectively, the latter with a value of 93 J g-1 (Carmona et al., 2015).

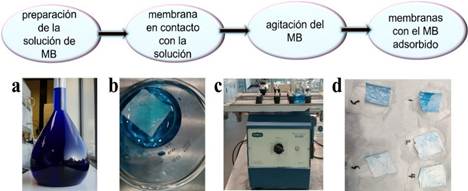

To perform the measurements of methylene blue adsorption by the membrane, it was cut into a square shape measuring 3 × 3 cm and placed inside the crucible with 50 ml of an aqueous solution of 5 ppm MB under continuous stirring. Aliquots of the dye solution were taken every 10 min until 80 min was reached.
The aliquots were measured with a HACH DR6000 UV-vis spectrophotometer with a reference beam optical system, scanning speed of 900 nm min-1, recording data each nm, using a tungsten (370-1 100 nm) and deuterium (190-370 nm) lamp as a source. The measurement range was from 400 nm to 850 nm, and the methodology is represented in Figure 1.
For the tests of photolysis and photodegradation of MB, in a similar way to the tests described above. First, for photolysis tests, 50 ml of solution (5 ppm) was measured and poured into the crucible without the membrane suspended. An irradiation of 250 W of UV light (254 nm) was applied using a photoreactor for 80 min. Aliquots were taken after 10 min and measured with a UV-Vis spectrophotometer under the same conditions as the measurements in the previous section at a λmax = 665 nm. The same procedure was followed for the photodegradation of MB, but with the membrane inside the solution, as shown in Figure 2.
Using SEM microscopy, it was possible to identify the porosity of the membrane and the incorporation of nanoparticles on its surface. The morphology of membranes prepared with PLA and PLA/TiO₂ is shown in the micrographs of Figure 3. In Figure 3a, it was observed that pure PLA presents a morphology consisting of a dense surface layer supported by a more porous inner sublayer.
This is due to the phase inversion method, which allows for the movement of PLA polymer molecules and the formation of a porous membrane during the process (George et al., 2024). Figure 3b-d shows the morphology of the membranes formed by PLA/TiO2 nanocomposites at various concentrations of TiO2. In the micrographs, it was observed that there is an agglomeration of the TiO2 nanoparticles in the membrane.
This effect is known to affect blocking membrane pores as the concentration of TiO2 nanoparticles increases (Hickman et al., 2018; George et al., 2024). FTIR spectroscopy was used to characterize the chemical structure and functional groups of both the pure membrane and the membranes of the nanocomposites, as shown in Figure 4.

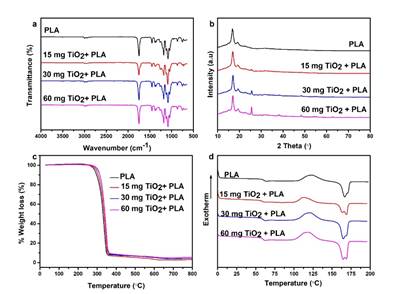

Figure 4a presents the FTIR spectra of PLA and TiO2-prepared materials. In the graph shown, the asymmetrical and symmetrical stretching vibrations of the C-H and CH3 bonds are represented by the bands at 2 995 cm-1 and 2 948 cm-1. The C= O stretching vibration of the PLA ester group is attributed to the band at 1 750 cm-1. On the other hand, the characteristic bands of the symmetrical and asymmetric deformation of -CH3 are bands at 1 453 and 1 378 cm-1.
The stretching vibration of the C-O-C bond is attributed to the band located at 1 187 cm-1, while the symmetrical and asymmetric deformation of C-H corresponds to the 1 381 and 1 360 cm-1 bands. The three bands between 1 044 cm-1 represent the stretching vibrations of the C-O-C bonds, at 870 cm-1 for the C-C bond, and the oscillating vibration of the -CH3 group appears at 954 cm-1. Finally, the bands assigned to the amorphous and crystalline phases of PLA appear at 870 cm-1 and 754 cm-1 (González et al., 2018; Furukawa et al., 2005; Salahuddin et al., 2020).
It is noteworthy that the addition of TiO2 nanoparticles does not have a noticeable effect on band position and intensity when comparing the spectra of the nanocomposite membranes and the spectrum of pure PLA. The crystallinity of pure PLA and nanocomposites was analyzed by XRD, as illustrated in Figure 4b. The graph shows the spectra with the crystalline peaks of pure PLA and different concentrations of TiO2 nanoparticles. The diffractogram of pure PLA shows two distinctive peaks at 16.8° and 19.2°, corresponding to the reflection of the planes (200) and (203) (Inai et al., 2005; Thomas et al., 2020).
Likewise, from the diffractogram, the composite membrane presented a pattern of XRD that confirmed the presence of PLA with the two peaks mentioned above and TiO2 (anatase phase) in the composite membrane. The values of 2θ of the peaks obtained from the PLA of the composite membrane appear at 17° and 19.3°, and the rest of the peaks found at 25.6°, 38°, 48.3°, 54.3°, and 55.3° correspond to the anatase phase of TiO2.
Although the FTIR analysis showed no evidence of the presence of TiO2, XRD was able to confirm the presence of the nanoparticles in all membranes. It is also observed that the intensity of the characteristic peaks increases with the increase in the concentration of the nanoparticles. This has already been observed by other authors, which confirms the incorporation of nanoparticles into the composite material (Mhlanga and Ray, 2014; Hou et al., 2018).
TGA analysis was used to identify and quantify the thermal stability of the prepared materials. The TGA curves are represented in Figure 4c, in which a degradation process is identified in a single stage. This occurs from 282 °C to 351 °C in pure PLA, from 287 °C to 358 °C for material with 1 wt.% TiO2, from 291 °C to 360 °C for 2 wt.%, and from 291 °C to 365 °C for 4 wt.% TiO2.
On the other hand, the remaining mass at the end of the measurements corresponds to the residue of inorganic material. The figure shows that the addition of TiO2 nanoparticles confers an improvement in thermal stability and decomposition temperature, which coincides with what has been reported by other authors (González et al., 2018). As observed in Figure 4d, DSC analysis was used to determine the thermal properties and transitions of the prepared membranes.
Table 1 shows the data obtained from DSC, such as the glass transition temperature (Tg), the melting temperature (Tm), and the cold crystallization temperature (Tcc). Due to the characteristic melting and recrystallization behavior of PLA, both pure PLA and nanocomposites exhibit two melting peaks, the first at a temperature of 166.4 °C for PLA and at a slightly lower temperature for the rest of the materials with TiO2. The second peak occurs due to the recrystallization and melting of the crystals formed during the DSC heating process, which has already been observed previously by other authors (Sarasua et al., 1998; Teamsinsungvon et al., 2022).
As mentioned in this paragraph, the addition of TiO2 nanoparticles has a slight effect on the melting temperature of PLA, suggesting that these particles do not significantly affect the arrangement of the macromolecular chains of the polymer and their crystallinity under the same processing conditions, which is consistent with what other authors have reported (Liu et al., 2013; Wang et al., 2013; Gonzalez et al., 2018).

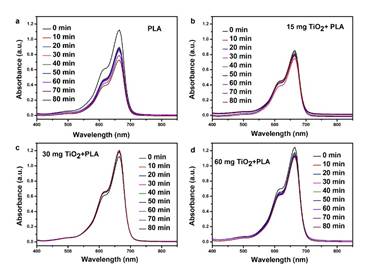

Figure 5 shows the UV-Vis spectra whose absorbance corresponds to the adsorption of methylene blue by the membranes and Table 2 shows the % of MB adsorption. The results obtained show that PLA experiences the highest percentage of adsorption, degrading 69.4% at 80 min, which is much higher than membranes prepared from nanocomposites, which, in the best case, achieve an adsorption of 14.97%. This behavior is due to the porous nature of PLA membranes, which was confirmed by the micrographs presented above.
The addition of TiO2 nanoparticles reduces MB adsorption, which is explained by the nanoparticles coating the pores of the composite, resulting in low adsorption values. This is evidenced in the samples with 1% and 2% by weight of TiO2. Nonetheless, the results suggest that at higher concentrations of TiO2, the effect of photodegradation begins to be observed.
Therefore, the sample with 4% by weight of TiO2 shows a certain degree of degradation, although less than that of pure PLA. This confirms that, under visible light conditions, both mechanisms exist, although the predominant effect in prepared membranes is adsorption.

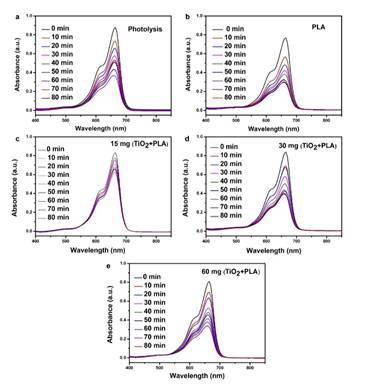

Figure 6 shows the UV-Vis spectrum of MB degradation when samples are exposed to UV radiation at 250 W. The results obtained from photodegradation are shown in Table 3. The results reveal an increase in the (%) of degradation, evidently due to the action of the applied radiation. In addition, a greater degradation is observed for the sample with higher TiO2 content, since the sample with 4% by weight of TiO2 shows a (%) degradation of 49.6% at a time of 80 min.

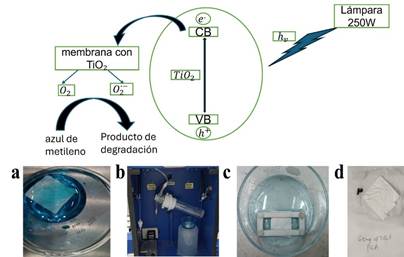

As demonstrated in Figure 2, the blue coloration and intensity of the solution have decreased after the process, which is due to the catalytic effect of TiO2 nanoparticles when exposed to UV radiation. In addition, according to the morphological characterization, the presence of TiO2 nanoparticles uniformly distributed on the membrane surface was confirmed; these particles act as surface active sites for the photocatalytic degradation process (Deepalekshm et al., 2021; Mohammad and Atassi, 2021).
From the data presented in Table 3, with the % photodegradation of the prepared membranes, it is observed that pure PLA presents a maximum degradation of MB at 50 min. On the other hand, the membranes with TiO2 presented a (%) of gradual degradation over time at times greater than 50 min, which implies changes in the photodegradation kinetics of the components, which depends on the concentration of TiO2.
Although the removal percentages are not very high, it is noteworthy that the experiments were carried out in times of up to 80 min. This contrasts with what has been reported by other authors using PLA, whose experiments are up to 12 h. This presents an advantage in terms of time-removal efficiency with the additional advantage of having a bio-based matrix, such as PLA.
The results presented in Figures 5 and 6 and Tables 2 and 3 allow us to differentiate the mechanisms, both adsorption and photocatalysis, that occur for the degradation of this dye and this type of membrane. In the case of PLA, adsorption predominates because the porous nature of the membranes allows the capture of dye molecules, and the presence of TiO2 nanoparticles inhibits removal.
On the other hand, the photodegradation results suggest that as the concentration of TiO2 increases, the degradation of the dye begins to occur and gradually increases as the contact time of the ultraviolet light with the solution increases. The results confirm the feasibility of using these membranes as a sustainable alternative for water treatment and removal of dyes, such as MB, for potential use in wastewater plants.
PLA and PLA-TiO2 nanocomposite membranes were successfully prepared using the phase inversion method, which is a simple and easily scalable method for membrane production. The degradation capacity of the membranes was evaluated, obtaining a greater degradation by adding 4% by weight of TiO2 nanoparticles, in a time of 80 min.
Due to the relatively high removal-time ratio and the fact that this process can be carried out in temperate environments, the membranes fabricated in the work can be used to remove dyes such as MB from industrial effluent and agricultural wastewater. Nevertheless, prospects for this research could focus on evaluating other concentrations of nanoparticles, as well as studies of pH and antibacterial properties, to proceed with the evaluation in real wastewater.
