Spatial variability of Mycosphaerella coffeicola (Cooke) populations in coffee plantations, State of Mexico

Study area

The study was conducted in Temascaltepec (19° 02’ 3” north latitude, 100° 02’ 29” west longitude, 1 719 masl); four plots with Caturra and Typica varieties were selected. Biweekly sampling was carried out from 2021 to February 2022.

Each plot (0.5 ha) was divided into 50 quadrants, selecting 200 shrubs at random, georeferenced with GPSmap60 (Garmin). In each shrub stratum (high, low, medium), damaged leaves were counted on primary branches oriented to the four cardinal points (Ramírez-Dávila et al., 2011; Acosta-Guadarrama et al., 2017; Lara et al., 2018).

To identify the fungus, samples were isolated in specific culture media (Tapia-Rodríguez et al., 2020) and morphological characterization of monoconidial strains was performed, which were reseeded in (CAA) and placed in an incubator at 24 °C. Taxonomic keys were used (Chand et al., 1954).

Climatic elements

Temperature and relative humidity were recorded with a Hobo Pro V2 Datta Loger placed in each plot.

Geostatistical analysis

Experimental semivariograms fitted to spherical, exponential, Gaussian, linear and penta-parametric models were generated with Variowin 2.2 (Software for spatial data analysis) (Ramírez, 2011). Spatial dependence was evaluated and values were interpolated using ordinary kriging, estimating values associated with points not sampled and represented on maps in Surfer 16 (Surface Mapping System, Golden Software Inc., Golden) (Cambardella et al., 1994). The maps were used to estimate the infested area to consider an economic and environmental assessment of directed agriculture (Ramírez-Dávila et al., 2008; Tapia-Rodríguez et al., 2020).

Pathogen identification

Morphological analysis confirmed the presence of Mycosphaerella coffeicola. Observations in light microscopy revealed hyaline to slightly pigmented, multicellular, thread-shaped conidia with sharp ends and typical transverse septations measuring 30-200 μm long and 2.5-5 μm wide, values that are similar to those reported for Cercospora coffeicola (Chand et al., 1954).

Climatic elements

The temperature ranged from 18 °C in January to 25.9 °C in September, with relative humidity of 44% to 90%. The epidemiological triangle is a concept that is applied to diseases and pests in crops. The three key components for propagation and persistence, according to Pérez (2023), three factors must coexist: host (coffee), causal agent (iron spot) and favorable conditions that encompass all abiotic factors (soil, management, variety, climate, among others).

Likewise, Guzmán et al. (2008) indicate that iron spot affects the plant in all stages of development and causes loss of fruit weight, deterioration of quality and a high percentage of deficient production; on the other hand, Guzmán-Piedrahita and Rivillas-Osorio (2005) mention that the temperature ranges between 18 and 28 °C, with an optimum of 25 °C, and 70 and 100% in relative humidity with an optimum of 98%; for her part, Arteaga-Luna (2013) points out that the disease is more favored by high humidity, high temperature, and water stress, when temperatures vary between 18 and 25 °C, incubation lasts 24 to 25 days.

The temperature for conidia germination is 30 to 34 °C. Guzmán-Piedrahita and Rivillas-Osorio (2005) indicate the importance of some climatic factors, such as precipitation, temperature, and relative humidity.

Geostatistics

The semivariograms fitted the following models: Gaussian 37.5% (18 of 48), spherical 43.75% (21 of 48), and exponential 18.7% (9 of 48) (Table 1). The geostatistical parameters allowed the validation of semivariograms. All the semivariograms of the models obtained were determined to have a nugget effect equal to zero (Table 1).

The high level of spatial dependence resulted from dividing the value of the nugget effect by the value of the sill, which was less than 25% for all semivariograms. The values of the range or scope ranged from 6.75 to 10.8 m for plot one, and regarding plot two, they ranged from 2.99 to 4.6 m (Table 1). These ranges are the maximum distance up to which there is a relationship between the data.

The maps made based on the ordinary kriging method are shown in Figures 1 and 3. In the maps made, it is possible to distinguish the different points of aggregation of incidence of iron spot disease in the four plots studied; it should be noted that, with these maps, we can visually identify how the disease behaves spatially with respect to time and soil and climatic requirements.

Figure 1

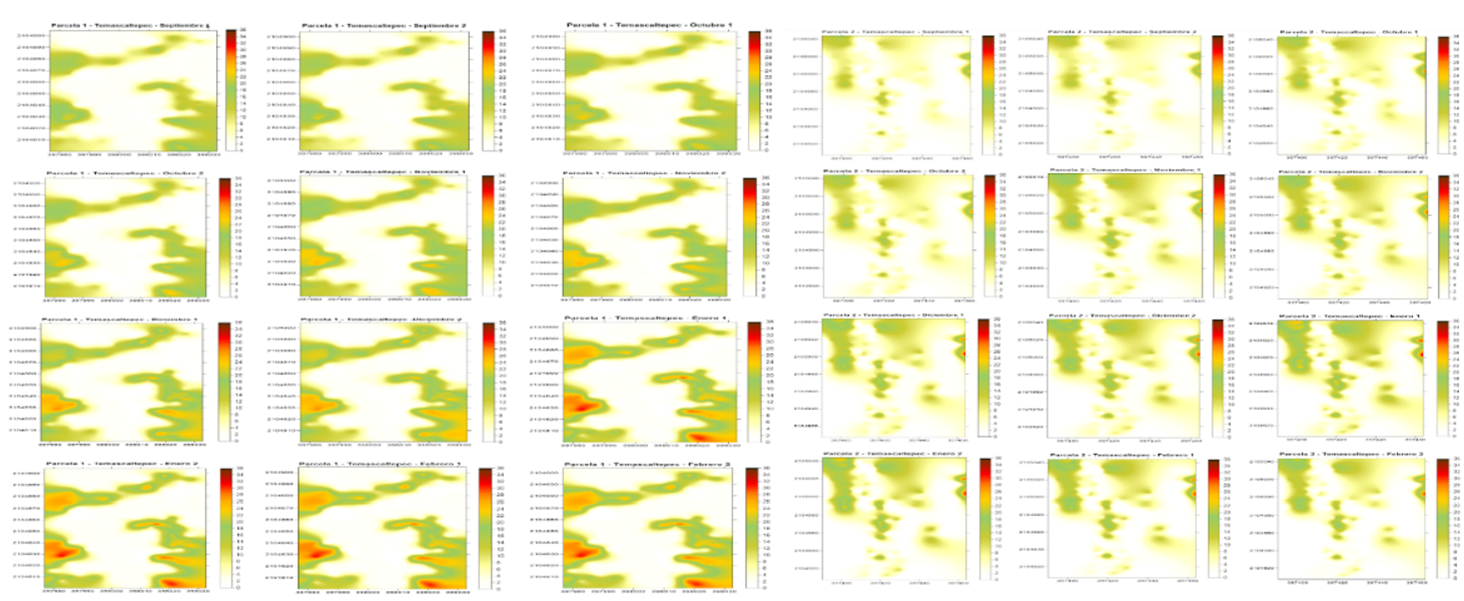

Figure 1. Map of infection density of iron spot Mycosphaerella coffeicola, plots one and two of the municipality of Temascaltepec, State of Mexico.

Figure 2

Figure 2. Map of infection density of iron spot Mycosphaerella coffeicola, plots three and four of the municipality of Temascaltepec, State of Mexico.

The spatial variability of the iron spot was determined through the use of geostatistics; the results agree with other authors, such as Ramírez et al. (2011), who indicate that the geostatistical analysis was appropriate for modeling and mapping the spatial distribution of corn head smut; on the other hand, Turechek and Madden (1999) point out that, through geostatistics, they carried out the spatial modeling of the damage caused by the disease Mycosphaerella fragariae in strawberry leaves on different dates; likewise, Sciarretta et al. (2008) indicate that, through geostatistics, they identified the spatial distribution of Lobesia botrana in grape plots.

Regarding the semivariograms that fitted the Gaussian models, these indicate that the behavior of iron spot disease in the plots was continuous, since the infestation of the fungus, in terms of its advance, is among the neighboring trees, which suggest that it begins leaf by leaf; this phenomenon was observed by Tapia-Rodríguez et al. (2020) in anthracnose in avocado crops, which presents an aggregate spatial distribution in the crop, with semivariograms that fitted the Gaussian model, interpreting that the disease presents an accelerated growth over time continuously.

In the study by Acosta-Guadarrama et al. (2017) in thrips, the adjustment was mainly Gaussian, which indicates a continuous expression of the insect within avocado plantations.

On the other hand, the models fitted to the spherical model indicate that iron spot populations are mostly present in certain areas of the plot compared to the rest of the points considered in the sampling, that is, the aggregation centers are random within the infestation zone in the plot; Esquivel and Jasso (2014) pointed out that, in the semivariograms fitted to the spherical model, armyworm aggregation centers are random within the infestation zone, with rapid growth close to the source.

Finally, the exponential models indicate that aggregation in the disease occurs in irregular boundaries in the plot, showing a discontinuous spatial distribution; likewise, Ramírez-Dávila et al. (2011) point out that the exponential models that were obtained in the B. cockerelli samplings presented specific points within the plot in a discontinuous manner; on the other hand, Paz and Arrieche (2017) indicate that, with the samplings carried out on Thrips tabaci, they obtained exponential models, concluding that the special distribution responds to an aggregate pattern, going from dispersed areas to well-defined areas.

Regarding the nugget effect, in all models, it was equal to zero, allowing us to consider that the error was minimal and the sampling scale was appropriate (Ramírez-Dávila et al., 2011; Tapia-Rodríguez et al., 2020). The high level of spatial dependence is known through the value resulting from dividing the value of the nugget effect by the value of the sill, indicating less than 25% in all samplings.

The values show a high spatial dependence, which indicates that the patches of iron spot infection depend on each other and their level of aggregation. This was also observed by Maldonado et al. (2016), who point out that the spatial distribution of thrips is similar to that of iron spot.

Infected area

Table 2 details the results obtained in the municipality of Temascaltepec with respect to the infested area; it can be seen that in no sampling did the infection reach 100%; regarding the highest percentage, this was registered at 70%, which was the case of plot three in sampling six; the lowest percentages were registered at 53%, in plot four sampling eleven; the above is relevant for the integrated management of iron spot in the coffee plantations of the municipality of Temascaltepec since it will allow direct applications on specific areas of infection.

Once the corresponding theoretical semivariograms were validated, the geostatistical method called ordinary kriging was used to make the density maps, allowing us to visualize the behavior of the aggregation foci in the sampled plots; in this sense, in their work on spatial distribution of Mycena citricolor in coffee plantations, Pino-Miranda et al. (2022) generated maps through the ordinary kriging, estimating the percentages of infected area and the values associated with unsampled points; on the other hand, according to Cárdenas et al. (2017), in their spatial study on the incidence of diseases in different types of cocoa, kriging maps allow us to estimate the spatial distribution of areas of influence with specific levels of prevalence. Other authors, such as Lara et al. (2018), indicate that the maps obtained with the ordinary kriging technique allow us to identify the places where the populations are concentrated since an interpolation describing the spatial variation is made and there is a predictive capacity.

This generated both ecological and economic benefits as the frequency of pesticide application is reduced, fuel is saved, and more precise management can be done with these maps. Table 2 shows the percentage of the area infested by iron spot, and it can be observed that the distribution of the aggregation of the incidences or foci of iron spot infestation at no time infested the entire plot.

A study by García and Flego (2008) indicates that precision agriculture is based on applying the right amount of inputs at the right time and in the right place, involving the use of global positioning systems (GPS) and other electronic means to obtain crop data.

The maps generated through kriging allow us to identify foci of infection of diseases and thus contribute to accurate and timely decision-making, contributing to the generation of integrated management strategies; according to Sepúlveda (2016), the control of the fungus Mycosphaerella requires the application of an increasing number of fungicides due to the resistance that this pathogen has developed; on the other hand, Pérez (2023) points out that, with the use of infestation maps, producers can be suggested to carry out an integrated management of the pest, in which control methods, such as biological and cultural, different from chemical, can be used, greatly reducing contamination to the environment.
