The implementation of entomopathogenic fungal conidia represents an alternative with advantages compared to chemical insecticides. Their production can be carried out on inexpensive substrates. The culture conditions, including substrates, temperature, moisture, and aeration rate for the production of Mr Xoch8.1 conidia in solid culture were examined; the research was conducted in Ecatepec de Morelos, State of Mexico, in 2022. An analysis of the quality of the conidia was carried out at the laboratory level, considering germination, viability, and infectivity. A conidiation profile was made during 11 days of culture of the Mr Xoch8.1 strain in solid fermentation. The highest production of conidia was observed at eight days. Production was evaluated on different substrates, with the production with white rice standing out. The incubation temperature at 28 °C was the most appropriate. The absence of forced aeration generated the highest production. The initial moisture of 60% led to a high production of conidia. The germination and viability of the conidia were 93% and 57%, respectively. In terms of infectivity, a mortality of 60% was achieved in mealworm. The production of Mr Xoch8.1 conidia in solid fermentation is a sustainable alternative through the use of inexpensive substrates and controlled conditions, such as a temperature of 28 °C, moisture of 60%, and absence of forced aeration. These conditions allow a high production of conidia with good germination, viability, and infectivity, demonstrating their potential as a biological control agent.
Metarhizium robertsii Xoch 8.1, Tenebrio molitor, biological control, conidia, infectivity.
The sustained increase in food demand, driven by population growth, has motivated the exploration of new strategies to optimize agricultural production. A key measure in this context is the reduction of crop losses, which are attributable to the action of phytopathogenic organisms, such as insects, nematodes, and fungi harmful to plants. Among the most widely adopted strategies, the use of agrochemicals has proven to be fundamental in mitigating the economic impact of these pests as it plays a decisive role in preserving and increasing agricultural yields.
Despite the benefits of certain agrochemicals, their toxicity, environmental persistence, and incorrect application has led to the need to reconsider pest control strategies (Guédez et al., 2008). In addition, pesticides are also potentially toxic to humans, and can cause cancer, damage to the brain, and changes in the fetus. The excessive use of pesticides in the country’s agricultural areas is related to negative effects on terrestrial and coastal ecosystems (García-Hernández et al., 2018).
To reduce the above effects, biological control agents are formulated, which consist of living organisms whose purpose is to reduce the population of pest insects and pathogens that negatively impact crops. The use of entomopathogenic fungi, bacteria, viruses, and nematodes as biological control agents offers a promising alternative. These organisms can regulate insect, pests and pathogen populations effectively without the risks associated with conventional agrochemicals.
In addition, their ability to control pests in a specific manner reduces the negative impact on other non-target organisms and the environment in general (Sharma et al., 2023). Companies and research organizations are particularly interested in fungi due to their ability to play a role in controlling pests and diseases in crops, without causing damage to the environment or health (Nava-Pérez et al., 2012).
The optimization of culture conditions for the mass production of infective cells of organisms used in biological control is essential for their commercial viability. Understanding the factors that affect the growth and reproduction of these organisms, such as entomopathogenic fungi, is critical to maximizing the efficacy of bioinsecticide products (Jackson et al., 2010). Identifying and adjusting optimal growing conditions is crucial. This includes factors such as temperature, moisture, pH of culture medium, and nutrient composition. Variability in these conditions can significantly affect the rate of growth and reproduction (Xing et al., 2023).
The availability of nutrients, such as carbohydrates and proteins, is essential for microbial growth. Understanding how the organism uses and harnesses these nutrient sources can help design more efficient culture media (Jaronski, 2023). Assessing the growth rate of the organism at different temperatures and on various substrates provides valuable information about its versatility and adaptability. This allows us to select strains that perform well in a variety of conditions. Understanding the organism’s metabolism is crucial.
The rate at which an organism reproduces and multiplies is a key factor (Parveen and Jeyarani, 2023). Fungi with faster growth rates may have competitive advantages in large-scale production and field application (Quesada-Moraga et al., 2023). This research aimed to evaluate the culture conditions (substrates, temperature, moisture, and aeration rate) in the production of Metarhizium robertsii conidia in solid cultures, as well as to analyze the quality of infective cells (germination, viability, and infectivity) at the laboratory level.
The study was conducted with the Mr Xoch8.1 strain (Metarhizium robertsii) obtained from the fungal collection of the Laboratory of Enzymology and Molecular Biology of Filamentous Fungi of the Metropolitan Autonomous University (Iztapalapa, Mexico). The strain was propagated by streaking in oat agar medium (Tlecuitl-Beristain et al., 2010), the composition of which was as follows (g L-1): 33.33 oats (one), 10 meat peptone (Bioxon, Mexico), and 15 bacteriological agar (Bioxon, Mexico); 100 x 15 mm Petri dishes were used with 20 ml of culture medium in each dish, and sterilization conditions were 121 °C and 15 psi for 20 min.
The strain was incubated at 28 °C for 10 days; subsequently, it was preserved and the technique consisted of cutting fragments of sporulated agar of approximately 1 x 1 cm2, which were placed in 15 ml tubes containing 5 ml of previously sterilized deionized water; finally, the tubes were stored at 4 °C (López-Lastra et al., 2022).
Glass column reactors with an internal diameter of 2 cm and a height of 20 cm were used as experimental units, and 10 g of initial dry substrate was used in each reactor. The substrate used was precooked rice with a moisture content of 1.96% before sterilization (Méndez-González et al., 2018), it was sterilized at 121 °C, 15 psi for 20 min; subsequently, the substrate was inoculated with a suspension of conidia at a concentration of 1 x 107 conidia ml-1, the initial moisture was adjusted to 40% by adding sterile distilled water, and all experimental units were incubated in a water bath at 28 °C for 11 days (Angel-Cuapio et al., 2015).
Conidia were counted every 24 h from a column, which was considered as an independent experimental unit. The analyses were carried out in triplicate on different dates; the conidia were extracted using all the solid matter contained (10 g) in each column and were harvested by adding 60 ml of a Tween 80 solution (0.05%) (Amresco, Ohio, USA), and it was stirred for 10 min with a magnetic stirrer at 350 rpm.
After stirring the sample, it was filtered with a sterile gauze of 10 x 10 cm to separate the rice particles (Angel-Cuapio and Loera, 2016); from day 3 to day 11, the conidia were counted in a Neubauer chamber (Marienfield, Germany) under a microscope (Velab VE-M5LCD) and a 40X objective. Conidia production was reported as conidia per gram of initial dry substrate (conidia gids-1).
Column reactors with rice were prepared to evaluate the effect of substrate, moisture, temperature, and aeration rate on conidia production; the conditions of sterilization, inoculation, incubation, extraction, and conidia counting were performed as previously described; all cultures were performed during eight days of culture (day of highest conidia production).
To evaluate the effect of the substrate, the following were used: precooked rice (verde valle), Peruvian beans (verde valle), white rice (verde valle), lentils (La Merced), popcorn (La Merced), millet (Los arbolitos, Sinaloa, Mexico), and wheat bran (Los arbolitos, Sinaloa, Mexico). Moisture contents of 20 to 70% were evaluated to determine the effect of the initial moisture of the substrate on the production of conidia.
To evaluate the effects of temperature during culture, incubation temperatures of 24 to 32 °C were evaluated. Finally, the effect of the aeration rate on the production of conidia was evaluated; for this, humid air flows of 0 to 50 ml air min-1 were assessed (Méndez-González et al., 2022).
The percentage of germination was calculated using conidia obtained at eight days of culture. Petri dishes were prepared with Sabouraud dextrose agar medium, SDA (Bioxon, Mexico); conidia suspensions were standardized at a concentration of 1×106 conidia ml-1 and 50 μl of this suspension was inoculated in the Petri dishes and distributed with a glass rod; the dishes were incubated at 28 °C for 12 h. The conidia were counted considering the germinated and non-germinated ones and the observation was made under a microscope (VELAB VE-M5LCD) with a 40X objective.
A germinated conidium was considered to be one that had a germ tube length of 2 times the diameter of the conidium (Ibrahim et al., 2002). The test was performed in triplicate. To determine the viability of the conidia, they were harvested at eight days of culture, conidia suspensions (1×104 conidia ml-1) were standardized, and 30 μl (300 conidia) was added to Petri dishes with SDA medium; they were then incubated at 28 °C and colony-forming units (CFU) were counted at 48 h of culture (Alcantara-Vargas et al., 2020). The test was performed in triplicate.
For infectivity tests, larvae of Tenebrio molitor (Coleoptera: Tenebrionidae) were used as model insects; the conidia produced in each column reactor were evaluated as follows: 10 T. molitor larvae were placed in each dish, eight Petri dishes were used for treatment (five dishes for infected larvae and three dishes as a negative control), infection was carried out by immersion of the larvae for 10 s in suspensions standardized at a concentration of 1×107 conidia ml-1, which were prepared in tubes with a capacity of 50 ml.
For negative controls, larvae were immersed for 10 s in a sterile solution of Tween 80 (0.05%). The infectivity parameters were estimated by using the exponential decay equation (Rodríguez-Gómez et al., 2009):
Where: Y is the percentage of survival (%) at time t, k is the specific death rate (d-1), t0 is the time when the first dead larva appeared (d) and Sf is the estimated asymptotic survival (%).

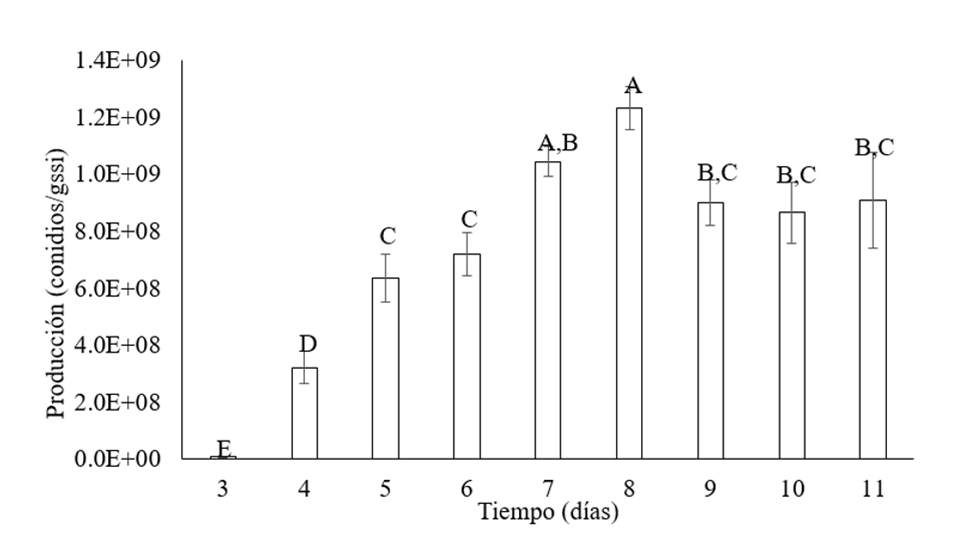

The production of conidia as a function of time is greater at eight days after culture, with a value of 1.3 x 109 conidia gids-1, and remains constant (8.91 x 108 conidia gids-1) from days 9 to 11 of incubation (Figure 1). Therefore, the following experiments were performed at this incubation time.

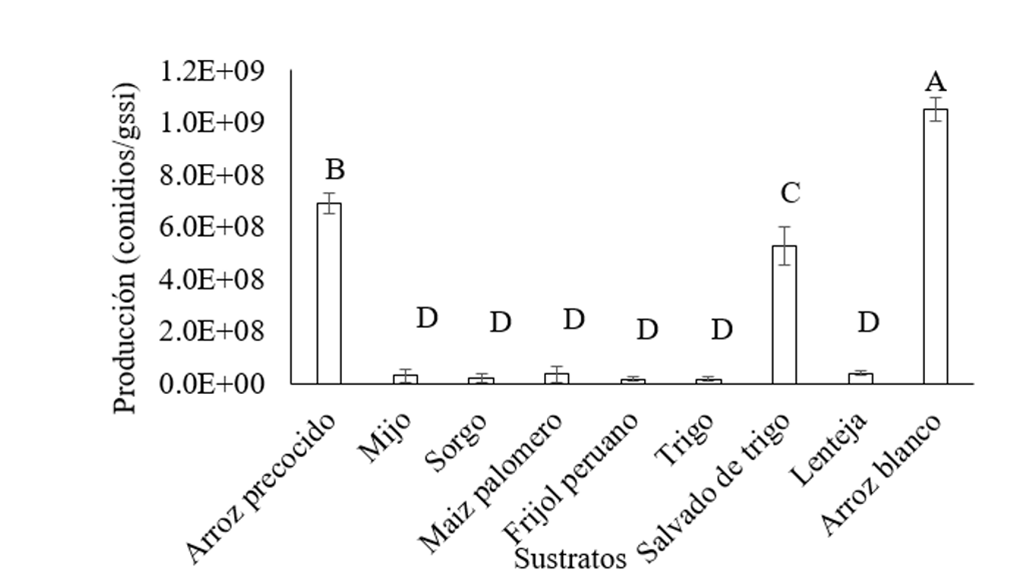

Nine solid substrates were evaluated for the production of Metarhizium robertsii conidia (Figure 2); the highest production value was reached when using white rice (1.05 x 109 conidia gids-1), the value obtained was statistically significant (p˂ 0.05) compared to the results found in other evaluated substrates (millet, sorghum, popcorn, wheat, and lentils). Therefore, the following experiments were performed at eight days of incubation using white rice.

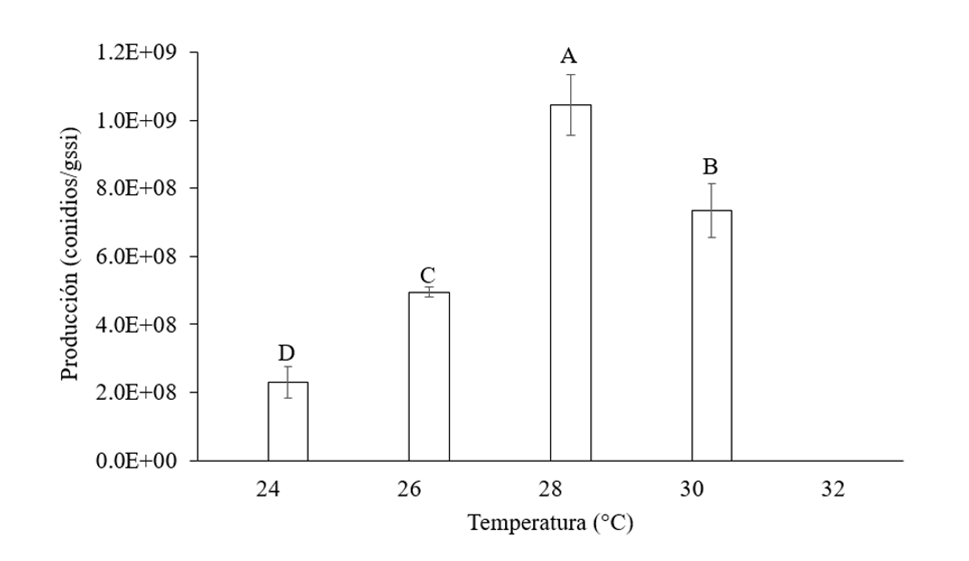

Subsequently, the incubation temperature was analyzed and it was found that the highest production of conidia was reached at 28 °C, showing a significant difference (p< 0.05) between the analyzed temperatures, with a production of 1.04 x 109 conidia gids-1; in contrast, no conidia production was observed at 32 °C (Figure 3). Therefore, the following experiments were performed at 8 days of incubation using white rice with an incubation temperature of 28 °C.

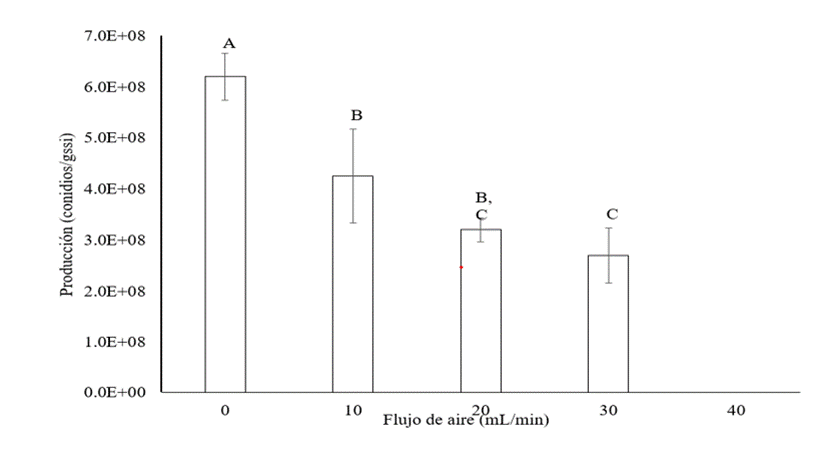

Because M. robertsii is an aerobic microorganism, the incorporation of moist air at different aeration rates was evaluated on conidia production (Figure 4). Increasing the rate of aeration decreases the production of conidia. The highest production was obtained with 0 ml min-1 (6 x 108 conidia gids-1), being statistically different among the other air flows evaluated (p˂ 0.05). Therefore, the following experiments were performed at eight days of incubation using white rice with an incubation temperature of 28 °C and no airflow.

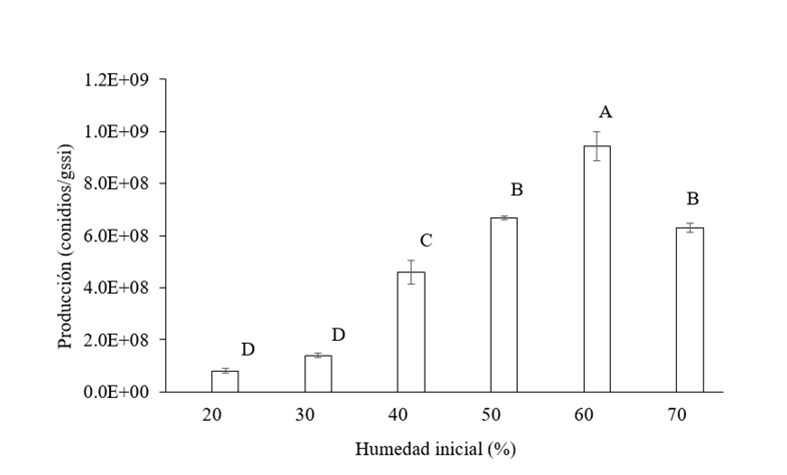

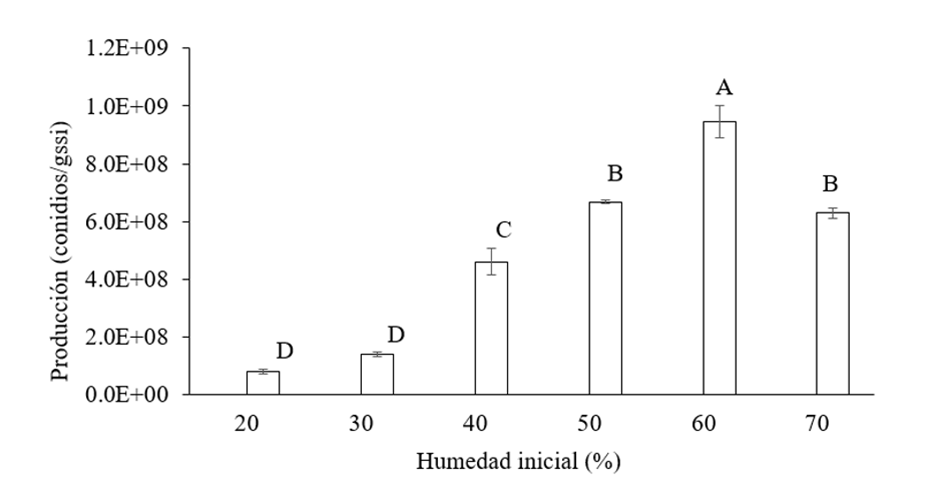

Different percentages of initial moisture were evaluated in the culture (Figure 5); it was found that when the moisture increases, the production of conidia increases; however, there is a moisture value in which the production of conidia is greater; in that sense, a production of 9.44 x 108 conidia gids-1 was observed with a moisture of 60%, this result being statistically different (p˂ 0.05) among the other treatments.
Germination, viability (Figure 6) and infectivity were determined in order to measure the quality of the conidia obtained at eight days of incubation using white rice with an incubation temperature of 28 °C without forced aeration and an initial moisture of 60%. A value of 93% was found for germination, whereas a value of 57% was found for viability.
Regarding the infectivity parameters, the values obtained were a delay time (t0) of 3.5 d, with a mortality rate (k) of 0.17 d-1, a lethal time 50 (LT50) of 15 d, and a final survival (S) of 40%.
Different conidia production values have been reported for the entomopathogenic fungus Metarhizium, such values indicate that the yields achieved depend on the culture conditions (pH, moisture, temperature, aeration, substrate, type of reactor, etc.) (Castillo-Castillo et al., 2022).
In this sense, one of the most economical substrates used in solid fermentation with a high percentage of starch (80%) is rice (Latifian et al., 2013). Angel-Cuapio and Loera (2016) report a production of Metarhizium anisopliae CP-OAX conidia of 5 x 108 conidia gids-1 after six days of culture using a mixture of precooked rice with wood shavings as substrate.
For their part, García-Cruz et al. (2019) reported a conidia production of 8.9 x 108 conidia g-1 rice with the Ma-005 strain of M. anisopliae at 14 days of incubation. On the other hand, Méndez-González et al. (2018) analyzed the production of M. anisopliae conidia in bag bioreactors and obtained a production of 7 x 108 conidia g-1 rice at 11 days of culture. Likewise, da Cunha et al. (2019) studied the production of M. anisopliae conidia in tray bioreactors and observed a production of 2.8 x 109 conidia g-1 rice during 10 d of culture.
On the other hand, Prakash et al. (2008) conducted research to optimize the production of M. anisopliae conidia in polypropylene bags and found a yield of 6.2 x 1010 conidia g-1 rice at 15 days of incubation. Temperature is the key factor limiting the effective use of Metarhizium; Vishwanath et al. (2021) reported that Metarhizium anisopliae presents a better conidiation at a temperature of 30 °C at siete days of incubation, which is consistent with what was obtained in the present research; likewise, it has been found that the genus Metarhizium is considered a mesophilic microorganism that can grow in a temperature range between 15 and 35 °C; however, optimal growth is between 25 and 30 °C (Zimmermann, 2007).
Regarding the air supply, it was found that high aeration rates negatively affected the conidiation of M. robertsii, which is consistent with what was reported by Arzumanov et al. (2005) with the strain IMI330189 of Metarhizium anisopliae, they found the highest production of conidia without airflow and they mention that forced air is not crucial for conidiation.
On the other hand, entomopathogenic fungi are aerobic microorganisms that require an air supply for growth and conidiation (Muñiz-Paredes and Loera, 2006); Méndez-González et al. (2022) mention that the supply of forced convection aeration (0.33 L kg-1 min-1) in column bioreactors presented high levels of production and productivity of M. robertsii conidia without affecting the quality of the cells obtained and they suggest that aeration between 0.1 and 0.66 L kg-1 min-1 is sufficient to effectively remove the CO2 produced by the microorganism since the accumulation of CO2 in the gaseous atmosphere of bioreactors affects the conidiation.
The germination and viability of conidia (asexual spores) of entomopathogenic fungi are crucial aspects for the success of these organisms as insect biological control agents, being an environmentally friendly alternative to chemical pesticides (Shahid et al., 2012). Conidia germination is influenced by environmental factors, such as temperature, moisture and light, but each species of entomopathogenic fungus may have specific requirements for efficient germination; nevertheless, it is essential for understanding and optimizing applications in the field (Benítez et al., 2004).
The present study found a germination of 93% and a viability of 40%, which are values consistent with those reported by other authors, as mentioned by Ruiz-Sánchez et al. (2011), who, with the M. anisopliae strain, found a germination of 100% at six hours of incubation with a suspension of 1 x 107 conidia ml-1, considering as germinated conidium those that have the length of the germ tube equal to the size of the conidium; on the other hand, Alcantara-Vargas et al. (2020) found a 50% viability for conidia of the M. anisopliae strain produced in rice.
The germination and viability parameters of entomopathogenic fungi comply with the standards established for the formulation of mycoinsecticides (Jenkins and Grzywacz, 2000); these standards are specific parameters that indicate the suitability of the strains for the production of biopesticides. The conidia of entomopathogenic fungi are usually the infective form for insects, hence the importance of producing them in large quantities and evaluating their quality; however, there are different factors that influence effectiveness, such as the mechanisms of infection that consider cuticular penetration and the production of enzymes and toxins (Jiubari et al., 2023)
Also important is the specificity of the host, which involves how conidia attach, germinate, and penetrate the insect, and the mechanisms that the insect may trigger in response to infection (Wang et al., 2023). Another feature to mention has to do with environmental factors since infectivity can depend on environmental factors, such as temperature, moisture and nutrient availability (Xing et al., 2023).
The best culture conditions for the production of Metarhizium robertsii conidia in solid fermentation were identified. The nature of the substrate is very important for the production of conidia. White rice led to the highest production. Of the variables evaluated, incubation temperature and aeration had the greatest impact on conidia production.
Under the production conditions, the conidia of Mr Xoch8.1 presented a high quality, with germination, viability, and infectivity rates sufficient to cause 60% mortality in mealworm larvae, which demonstrated their biological efficacy as a control agent. The suggestion to evaluate the possibility of simultaneous application with other fungi is interesting since synergies between different fungal strains could improve the effectiveness of biological control and expand the range of target species. Furthermore, if this can be achieved without significant additional costs, it could be a viable strategy.
The low cost of production is a key factor that can make the application of Metarhizium robertsii economically viable. This is essential to consider its large-scale application in agriculture. The proposal to continue research in this field is crucial. Expanding knowledge about the mass production of Metarhizium robertsii could lead to improvements in the efficacy, stability, and applicability of the fungus in different agricultural contexts.
