elocation-id: e3315
Carbon accumulation in coffee is a way to reduce greenhouse gases and combat climate change; nevertheless, in the Sierra de Chiapas, there is no accurate information on carbon capture in coffee plantations. Quantifying carbon is essential to value this ecosystem service and conserve coffee plantations through subsidies. For this reason, this research aims to evaluate the carbon stored in the aerial biomass of coffee in two altitudinal gradients and determine the concentration of carbon (CC) and nitrogen, with CC being an indispensable element in obtaining the carbon stored in coffee. The study was carried out at two altitudes: the first at 1 200 m and the second at an altitude of 1 500 m, in the year 2022. To estimate the carbon, first, the biomass was estimated indirectly using an allometric equation for the species, then the concentration of carbon and nitrogen was determined with a device called Thermo Scientific Flash 2000 NC Soils Analyzer, which works by complete combustion at 950 °C. Once the biomass and the concentration of carbon in coffee were obtained, they were multiplied, thus obtaining the stored carbon; for carbon dioxide, the stored carbon was multiplied by the constant 3.67. The results indicate significant differences in the range of 1 200 masl (10.72 t C ha-1) and the lowest carbon storage in the range of 1 500 masl (4.74 t C ha-1). This indicates that the altitude of the site influences carbon capture in coffee; the lower the altitude, the more carbon stored there will be in the coffee.
altitude, biomass, coffee.
One way to mitigate greenhouse gases (GHGs) is through carbon capture through photosynthesis, which must be sequestered for as long as possible (Espinoza et al., 2012). The agro-industrial crop of coffee is the main crop in the Sierra Madre de Chiapas, where producers obtain a large part of their livelihood, which is why they conserve the coffee plantations. Therefore, the carbon in coffee will always be sequestered in the air or in the soil, and it contributes to the reduction of GHGs.
The conservation of coffee allows carbon capture, so it should be proposed as an alternative to mitigate climate change through subsidies for the producer and thus further guarantee the carbon that exists in coffee plantations (Olorunfemi et al., 2019), so that the soil would be conserved, and greater biological nitrogen fixation and nutrient cycling would be obtained (Villa et al., 2020).
To obtain the carbon stored in coffee, it is necessary to obtain the biomass and the percentage carbon content. Biomass is the dry weight of the species, which can be estimated directly and indirectly. Carbon concentrations (CC) in Mexico have been studied mostly in conifers and broadleaf trees (Yerena et al., 2012b; Jiménez et al., 2013; Villanueva et al., 2015; Pompa et al., 2017), but very little for coffee. Therefore, knowing the carbon concentration in coffee would make the determination of carbon storage more accurate (Aquino et al., 2018).
In a study on coffee, Zavala et al. (2018) found that the stored carbon depends on the altitude, where the lower the altitude, the greater the carbon capture. At altitudes of 1 565 m, Andrade et al. (2014) conducted a study in Colombia on carbon fixation in coffee, where they recorded an average of 0.63 t C ha-1. On the other hand, at altitudes below 1 200 m, the average coffee carbon in Ecuador is 4.6 t C ha-1 (Corral et al., 2013).
Given the importance and considerations mentioned above, this research aims to evaluate the carbon storage in aerial coffee biomass in two altitudinal gradients; in addition, the concentration of carbon and nitrogen was determined, with the CC being a reliable element to obtain the carbon stored in coffee.

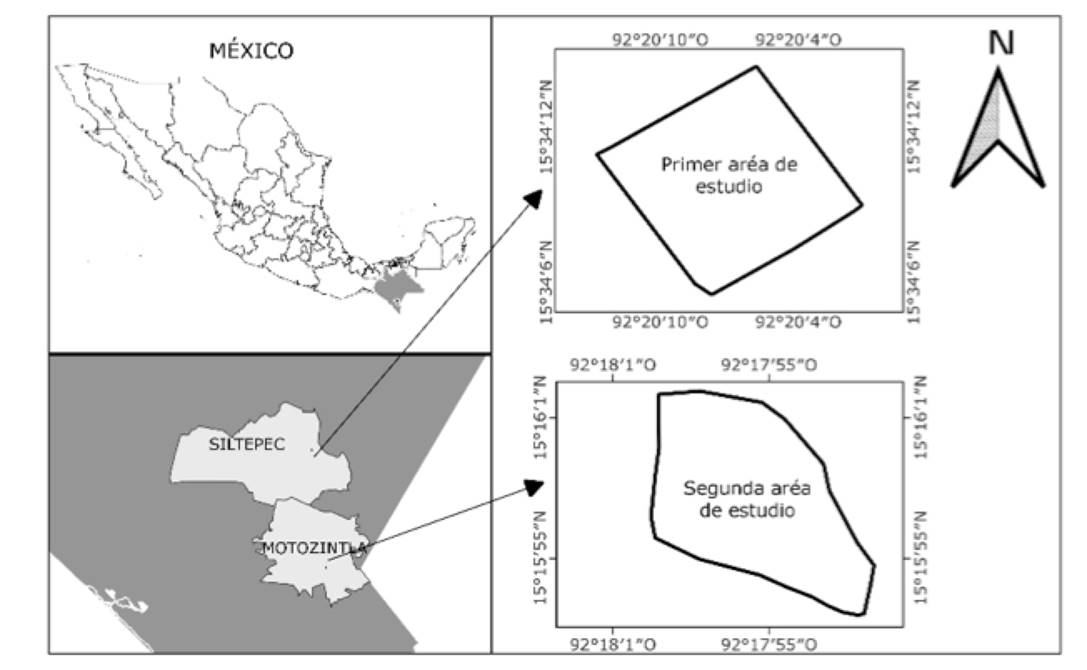

The study was carried out in two municipalities belonging to the Sierra Madre de Chiapas: The first area is located between the coordinates 15° 34’ 10.07” north latitude and 92° 20’ 6.28” west longitude, at an altitude of 1 200 m, located in the municipality of Siltepec. The second area with coordinates 15° 15’ 56.7” north latitude and 92° 17’ 55.07” west longitude, at an altitude of 1 500 m located in Motozintla (Figure 1). The land has slopes from 0 to 60%. The climates are sub-humid warm, humid warm, and humid semi-warm, with abundant rainfall in summer ranging from 800 to 1 200 mm, and an average annual temperature greater than 18 °C; the predominant soils in the area are Luvisol, Regosol, and Acrisol (García, 2004).
A random sampling was carried out in each of the localities, evaluating an area of 5 ha; to determine the size of sites to be inventoried, first a pre-sampling was carried out, using the following equation (1) (Ancira and Treviño, 2015).
1). Where: n= sample size; t2= value extracted from Student’s t-table (p< 0.05). CV= coefficient of variation; E= percentage error. The sample size was defined from the variable of biomass. A total of 24 sites were established in both areas; the sites were rectangular 4 x 25 m (100 m2) (Espinosa et al., 2012; Timoteo et al., 2016). At each site, all coffee individuals present were evaluated. The variables measured were normal diameter (cm), with a Forestry Suppliers 283D/5m diameter tape, and heights (m), with a tape measure (Truper FH-5ME).
Aerial biomass in coffee was estimated using the allometric model proposed by (Hairiah et al., 2001), which includes only one independent variable. This model (2) was applied to each coffee individual. BT= 0.2811 * DBH ^ 2.0635 2). Where: BT= total aerial biomass (kg); DBH= diameter at breast height (cm).
Once the biomass was obtained, the carbon and nitrogen concentration of coffee was calculated. For the two areas, six individuals were randomly taken; for each individual, one sample was obtained for each component (bark, leaves, and trunk) and placed in paper bags (Aquino et al., 2018). The samples were dried in a Blue M drying oven until they reached a constant weight, then the 18 samples were pulverized in a Marathon Electric C20J020016 series mill, placed in polyethylene bags labeled with a code, with an average weight of 90 g each.
Thirty milligrams of each sample were then weighed on a scale to be analyzed by the equipment called Thermo Scientific Flash 2000 NC Soils Analyzer. The concentration of carbon and nitrogen was determined with the aforementioned equipment, which determines the concentrations in solid samples by complete combustion at a temperature of 950 °C; the gases produced by combustion are measured through a non-dispersive infrared detector that counts the carbon molecules contained in these gases (Yerena et al., 2012a).
The carbon stored in each coffee plant was estimated by multiplying the aerial biomass by the average carbon concentration of the components of the present study. Once the carbon storage was obtained, it was multiplied by the constant 3.67 (44/12), and the carbon dioxide in coffee was obtained (Zavala et al., 2018).
Biomass, carbon storage, and carbon dioxide in coffee were compared as independent populations through a Student’s t-test to check for significant differences at different altitudes (Hernández et al., 2017).
The carbon and nitrogen concentration data were subjected to an analysis of variance, and when there were significant differences, Tukey’s mean test (p< 0.05) was performed to verify the difference between the coffee components (Sáenz et al., 2021). The analyses were performed in the R Studio version 4.1.2 statistical program (Marroquín et al., 2018; R Core Team, 2022).
The number of coffee plants in Siltepec was 30 individuals per site on average, having an average density of 3 014 plants ha-1, while for Motozintla, there was an average of 32 individuals per site, with 3 211 plants per ha-1, this density depends on the form of planting with respect to the topography of the land. For both altitudes, the planting distance was 2 x 1.5 m. The planting frame in Siltepec was a real frame, with slopes of less than 20%, and in Motozintla, it was with a triangular pattern, with slopes of more than 40%. The difference in plants is due to the topography of each altitude (Table 1).
| Locality | Species | Planting distance (m) | Plants ha-1 |
|---|---|---|---|
| Siltepec | Coffee | 2 x 1.5 | 3 014 |
| Motozintla | Coffee | 2 x 1.5 | 3 211 |
The planting distance in coffee is the same as that reported by (Zavala et al., 2018), obtaining more than 3 000 individuals of coffee ha-1, while at distances of 1.3 x 1.3 m, densities > 6 250 were recorded (Medina et al., 2009; Jurado et al., 2019), which do not influence the CC with respect to the present research.
Diameters in Siltepec vary from 2.45 to 3.98 cm, reporting an average height of 2.91 m; these values estimate an average biomass of 2.49 kg per individual. For the other locality, the diameters range from 1.25 to 2.48 cm and an average height of 2.24 m, obtaining an average biomass of 0.88 kg per plant.
Sites with altitudes of 1 200 m (Siltepec) double the estimates of biomass, carbon, and carbon dioxide compared to 1 500 masl (Table 2). Based on the above, Solórzano and Querales (2010) report diameters in coffee from 2.02 to 4.1 cm, with these values being similar to this research, but lower for the variable of height (1.6 m) in both localities.
| Siltepec | ||||
| 2.88 | 2.91 | 226.6 | 107.2 | 393.7 |
| Motozintla | ||||
| 1.74 | 2.24 | 100.7 | 47.4 | 173.7 |
In a study carried out in Colombia, a coffee plant has an average biomass of 2 kg, this value is similar to that found in Siltepec, but higher than the biomass of Motozintla (Darío, 2011). Zavala et al. (2018) evaluated coffee at an altitude of 1 500 m, reporting an average diameter of 4.93 cm, with an average height of 1.75 m, resulting in a biomass per plant of 0.81 kg; this value was close to the biomass reported by Motozintla, although the results of diameter and height were higher than the two altitudes of the present study.

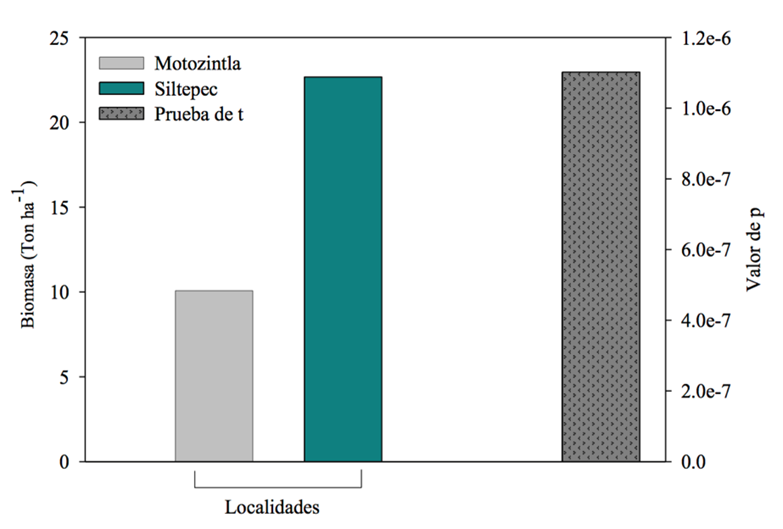

Statistical analysis using the Student’s t-test indicates that there are significant differences (p< 0.001) in biomass by altitude. At altitudes of 1 500 m, the average biomass was 10.07 t ha-1; for altitudes of 1 200 m, an average biomass of 22.66 t ha-1 is obtained (Figure 2); both results are higher than those reported by other researchers in coffee, where they record a biomass of 1.1 and 6.64 t ha-1 at altitudes above 1 500 m (Andrade et al., 2014; Jurado et al., 2019).
Likewise, Hernández et al. (2020) conducted a study on coffee in Colombia at an altitude of 1 200 m, obtaining a biomass of 7.2 t ha-1. Corral et al. (2013) reported 9.6 t ha-1 in coffee biomass, with this value being similar to the locality of Motozintla (1 500 masl) and lower for Siltepec. Nonetheless, in Peruvian coffee plantations at an altitude of 1 500 m, Zavala et al. (2018) recorded a biomass of 51.39 t ha-1 in coffee at 10 years.
In the present study, the lowest altitude is the one that stored the highest biomass in coffee plants; these results coincide with other studies where the highest stored biomass was recorded at altitudes ≤ 1 200 m (Mena et al., 2011; Hernández et al., 2012). Coffee plants play an important role in the accumulation of biomass as this species stores between 30 and 40% of biomass compared to an agroforestry system (Andrade et al., 2014; Terán et al., 2018). The accumulation of biomass can be attributed to crop management, such as pruning in coffee and fertilization, which contributes to better plant growth and development (Medina et al., 2009).
There were significant differences (p< 0.001) between the components of each locality. Tukey’s test( = 0.05) indicates that the concentration of carbon in the trunk component is statistically different, with values higher than the rest of the components by locality, while the leaf and bark components of Siltepec are statistically similar, the opposite occurs for the components (leaf and bark) of Motozintla, where there was a group with intermediate values ranging from 46.18 to 47.42% (Table 3).
Like this study, Yerena et al. (2012a) presented higher values in the trunk in Tamaulipas thorn scrub sites, and in the bark sites, the values were lower than the rest of its components. The average CC was higher in the locality of Siltepec, altitude lower than in Motozintla, which is similar to the research of Hernández et al. (2012) in a study of carbon capture where they found that, the lower the altitude, the higher the carbon content in the total biomass.
Through the analysis of variance, it was determined that there are significant differences between the coffee components (p< 0.001 ), so Tukey’s test ( = 0.05) was performed, where the carbon concentration was divided into 3 groups. The carbon content expressed as a percentage ranged from 45.45 to 49.11%, where the bark obtained the lowest concentration of carbon, then the leaf, and finally the trunk (Table 4).
| Component | Mean ± SE | Tukey grouping1 |
|---|---|---|
| Carbon | ||
| Trunk | 49.11 ±0.81 | a |
| Leaf | 46.98 ±0.54 | b |
| Bark | 45.45 ±0.84 | c |
| Nitrogen | ||
| Leaf | 3.03 ±0.35 | a |
| Bark | 1.68 ±0.15 | b |
| Trunk | 0.43 ±0.05 | c |
Figueroa et al. (2005) determined the CC in coffee, obtaining values of 41.9% in trunk and 42.3% in leaves; these percentages are lower than in the present study. The average total carbon content of this study was 47.18%; this value is similar to that recorded in Oaxaca, where they obtained 46.2% for species developed in tropical environments (Aquino et al., 2018), and also to that reported in broadleaf species (48.84%) and Pinus sp. (47.34%) by (Yerena et al., 2012b; Jiménez et al., 2013). On the other hand, the CC obtained in trees that are used as shade for coffee (40.28%) was lower than that of this research (Hernández et al., 2012). Regarding the above, the species have different carbon contents (41.9-49.95%); however, in most species, it is close to 0.5.
Coffee not only contains carbon but also nitrogen (N), mainly in the leaf component (3.03%), followed by the bark (1.68%) and finally the trunk (0.43), having an average of 1.71% in total nitrogen (Table 4). The average nitrogen content of this study is lower than that reported by Pérez et al. (2014), where values range from 2.91 to 3.09% N in coffee. Nevertheless, for tropical species in Chiapas, the nitrogen is 1.86% in a study conducted by Moreno et al. (2021), which is similar to this study, but lower for tropical trees in Oaxaca, with 0.48% N (Hernández et al., 2012). It is important to know the nitrogen in coffee plants because they serve as indicators of the plant’s nutritional status. A good leaf nitrogen content in coffee allows a good yield to be obtained; a value below 2.80% N (foliar) indicates nutrient insufficiency (Pérez et al., 2014).

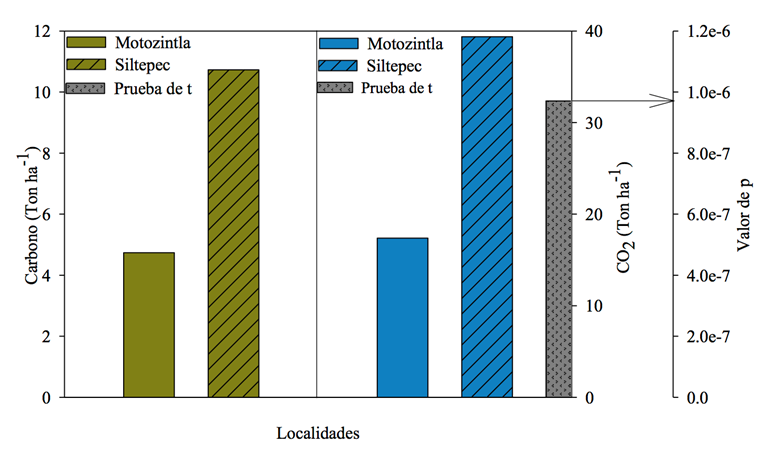

By estimating carbon (C) and carbon dioxide (CO2) in coffee by altitude, it was determined that there are significant differences (p< 0.001). In the present study, coffee plants registered 10.72 t C ha-1 and 39.37 t CO2 ha-1 at altitudes of 1 200m (Siltepec); 4.74 t C ha-1 and 17.37 t CO2 ha-1 were obtained for altitudes of 1 500 m (Motozintla); (Figure 3).
The highest storage of carbon and carbon dioxide occurred at altitudes of 1 200 m; this statement coincides with other authors where they have found the highest carbon potential of coffee at altitudes below 1 300 m (Hernández et al., 2012; Paz et al., 2018). Terán et al. (2018) conducted a study on coffee in Oaxaca with altitudes of 1 200 to 1 600 m, where they found values of 2.38 t C ha-1 and 8.71 t CO2 ha-1; these values are lower than the altitude of 1 200 m in this research, the opposite occurs for the altitude of 1 500 m.
In a study of coffee in Veracruz with altitudes above 2 200 m, Valdés et al. (2022) found values of 8.88 t C ha-1, different from what was reported in the present study. The results of the estimated variables of Motozintla are similar to the results of Van et al. (2002); Jurado et al. (2019); Hernández et al. (2020), where they found average values of 3.5 t C ha-1 and 12.84 t CO2 ha-1. Likewise, authors such as Zavala et al. (2018) reported 8.42 t C ha-1 and 30.90 t CO2 ha-1 in coffee at altitudes below 1 500 m in Peru. Carbon storage in coffee plants depends mainly on altitude, site slope, climatic conditions, and management practices, such as pruning (Darío, 2011; Hernández et al., 2012; Zavala et al., 2018).
The total carbon concentration in the aerial coffee biomass ranged from 45.45 to 49.11% in its components, obtaining an average carbon content of 47.18%. Carbon storage in the two altitudinal gradients showed significant differences, where the highest carbon recorded was at altitudes of 1 200 m with an average of 10.72 t C ha-1. Altitude is a variable that influenced carbon storage in coffee plantations in the Sierra Madre de Chiapas.
Andrade, H. J.; Marín, M. L. y Pachón P. D. 2014. Fijación de carbono y porcentaje de sombra en sistemas de producción de café (Coffea arabica L.) en el Líbano, Tolima, Colombia. Biagro. 26(2):127-32. http://www.scielo.org.ve/scielo.php?pid=S131633612014000200008&script=sci-arttext .
Aquino, R. M.; Velázquez, M. A.; Etchevers, B. J. D. y Castellanos, B. J. F. 2018. Concentración de carbono en tres especies de árboles tropicales de la Sierra Sur de Oaxaca. Agrociencia. 52(3):455-465. https://www.scielo.org.mx/pdf/agro/v52n3/2521-9766-agro-52-03-455.pdf.
Figueroa, N. C.; Etchevers, B. J. D.; Velázquez, M. A. y Acosta, M. M. 2005. Concentración de carbono en diferentes tipos de vegetación de la Sierra Norte de Oaxaca. Terra Latinoamericana. 23(1):57-64. https://www.redalyc.org/articulo.oa? id=57323108.
García, A. E. 2004. Modificaciones al sistema de clasificación climática de Köppen. Instituto de Geografía-Universidad Nacional Autónoma de México (UNAM). Serie Libros, Núm. 6. México, DF. 97 p. http://www.publicaciones.igg.unam.mx/index.php/ig/catalog/view/83/82/251-1 .
Hernández, N. H. E.; Andrade, J. H.; Suárez, S. J. C.; Sánchez, A. J. R.; Gutiérrez, S. D. R.; Gutiérrez, G. G. A.; Trujillo, T. E. y Casanoves, B. F. 2020. Almacenamiento de carbono en sistemas agroforestales en los Llanos Orientales de Colombia. Revista de Biología Tropical. 69(1):352-368. Doi:10.15517/rbt.v69i1.42959.
Jurado, R. M. A.; Ordoñez, J. H. R.; Ballesteros, P. W. y Delgado, V. I. A. 2019. Evaluación de captura de carbono en sistemas productivos de café (Coffea arabica L.) Consacá, Nariño-Colombia. 16 p. https://sired.udenar.edu.co/5909/.
Mena, E. V.; Andrade, H. J. y Navarro, M. C. 2011. Biomasa y carbono almacenado en sistemas agroforestales con café y en bosques secundarios de un gradiente altitudinal en Costa Rica. Agroforestería Neotropical. 1(1):2-20. http://revistas.ut.edu.co/index.php/agroforesteria/article/view/11/11.
Moreno, C. A. I.; Soto, P. M. L.; Cariño, O. M. M.; Palma, G. J. M.; Moctezuma, P. S.; Rosales, A. J. J.; Montañez, E. P. I.; Sosa, F. V. J.; Ruenes, M. M. R. y López, M. W. 2021. Los sistemas agroforestales de México-avances, experiencias, acciones y temas emergentes. In: Salgado, M. M. G.; Ruiz, B. C.; Moreno, M. J. L. y González, Á. J. Ed. Servicios ambientales en sistemas de café bajo sombra. El caso del carbono en biomasa aérea en la Sierra Madre de Chiapas. 1a. Ed. 485-499 pp.
Paz, P. F.; Velázquez, R. A. y Rojo, M. M. 2018. Estado actual del conocimiento del ciclo del carbono y sus interacciones en México. In: Salas, M. V.; Paz, P. F.; Rojas, G. F. y Bolaños, G. M. A. Ed. Almacenes de carbono en sistemas agroforestales cafetaleros de la Sierra Madre de Chiapas y Estado de México, México. 671-677 pp.
Pérez, D. A.; Castañeda, H. E.; Lozano, T. S.; Bustamante, G. C. A.; Rivera, E. R. A.; Rodríguez, O. G.; Martín, A. G. M.; Robles, P. C.; Acosta, C. G. and Fernández, T. A. 2014. Foliar analysis as an estimate on the nutritional state of Conilon coffee plantations on Cambisoils. Journal of Life Sciences. 8(2):181-187. https://www.researchgate.net/publication/270883682-Foliar-Analysis-as-an-Estimate-on-the-Nutritional-State-of-Conilon-Coffee-Plantations-on-Cambisoils/references.
R Core Team. 2022. R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing. Vienna, Austria. https://www.R-project.org/.
Sáenz, R. J. T.; Rueda, S. A.; Benavides, S. J. de D.; Muñoz, F. H. J.; Castillo, Q. D. y Sáenz, C. J. E. 2021. Ecuaciones alométricas, biomasa y carbono en plantaciones forestales tropicales en la costa de Jalisco. Revista Mexicana de Ciencias Forestales . 12(65):26-44. Doi: 10.29298/rmcf.v12i65.856.
Solórzano, E. N. J. y Querales, D. 2010. Crecimiento y desarrollo del café (Coffea arabica) bajo la sombra de cinco especies arbóreas. Revista Forestal Latinoamericana. 25(1):61-80. https://www.researchgate.net/publication/266316856.
Valdés, V. E.; Vázquez, D. L. P.; Tinoco, R. J. A.; Sánchez, H. R.; Salcedo, P. E. y Lagunes, F. E. 2022. Servicio ecosistémico de carbono almacenado en cafetales bajo sombra en sistema agroforestal. Revista Mexicana de Ciencias Agrícolas. 28(esp.):287-297. https://cienciasagricolas.inifap.gob.mx/index.php/agricolas/article/view/3283/5160 .
Van, N. M.; Rahayu, S.; Hairiah, K.; Wulan, C. Y.; Farida, A. and Verbist, B. 2002. Carbon stock assessment for a forest-to-coffee conversion landscape in Sumber-Jaya (Lampung, Indonesia): from allometric equations to land use change analysis. Journal of Science in China. 45(serie C):75-86. https://www.asb.cgiar.org/ PDFwebdocs/Carbon-Stocks-Sumber-Jaya1.pdf.
Zavala, S. J. W.; Zavala, G. S. L. y Mansilla, M. L. G. 2018. Estimación de la biomasa y carbono almacenado en un sistema agroforestal del cafetal de la Universidad Nacional Agraria de la Selva. Investigación y Amazonia, Tingo María, Perú. 8(5):1-8. https://revistas.unas.edu.pe/index.php/revia/article/view/200/183.
