elocation-id: e3205
In Oaxaca, Mexico, populations of Agave nussaviorum are declining and micropropagation is proposed in addition to the use of conventional methods. This work aimed to evaluate the effect of the concentration of inorganic salts and indole-butyric acid in the culture medium, as well as the incubation environment, to root shoots in vitro. In vitro cultured shoots were transferred for rooting to nine culture medium variants that differed in the concentration of inorganic salts of the culture medium (60, 80 and 100%) and indole-butyric acid (0, 0.5 and 1 mg L-1) in a factorial design with nine treatments. For 28 days, all cultures were incubated in the laboratory with LED lighting and the percentage of shoots with roots was evaluated. From day 29 onwards, half of the cultures in each variant of culture medium were separated to incubate them for 21 days exposed to solar radiation reduced by 40% by shade mesh in a greenhouse, while the rest continued in incubation with LED lamps in the laboratory. At the end of the first period, the highest percentage, 83.3% of shoots with roots, was in the culture medium with 60% inorganic salts and 0.5 mg L-1 of indole-butyric acid. At the end of the second period, all shoots had adventitious roots under the following conditions: culture medium with 60% salts and 0.5 or 1 mg L-1 indole-butyric acid incubated in the laboratory; culture medium with 60% inorganic salts and 1 mg L-1 indole-butyric acid incubated in a greenhouse; culture medium with 100% inorganic salts and 0.5 mg L-1 indole-butyric acid incubated in a greenhouse.
Agave nussaviorum, adventitious roots, micropropagation.
The species Agave angustifolia (Cruz-García et al., 2013), A. tequilana (Arzate-Fernández et al., 2016), A. potatorum (Molina-Guerrero et al., 2007), A. americana var. oaxacensis (Pérez-Santiago et al., 2014; Cruz-García et al., 2017) and A. nussaviorum are used to make distilled beverages. During 2021, in Oaxaca, there were 10 839.57 hectares of plantations and 2 992.19 ha were harvested (SIAP, 2021). There are no published data on the magnitude of wild agaves collection.
A. nussaviorum, which is known as papalomé in the Mixteca region of Oaxaca, is used for food, in traditional medicine (García-Mendoza, 2010) and to make mezcal. This species is collected from wild populations; therefore, its propagation is proposed to establish plantations. Plant tissue culture is applied in agaves to produce a greater number of plants in complement to conventional propagation procedures. There are records of the micropropagation of Agave tequilana (Valenzuela-Sánchez et al., 2006), A. angustifolia (Ríos-Ramírez et al., 2017), A. fourcroydes (Madrigal et al., 1990), A. americana var. oaxacensis (Enríquez-Valle et al., 2013) and A. salmiana (Silos-Espino et al., 2007).
In vitro propagation comprises five stages: a) preparation of the mother plants under hygienic conditions; b) establishment of aseptic cultures; c) multiplication of propagules; d) shoot rooting and e) transplantation into containers with substrate for acclimatization in a greenhouse (George and Debergh, 2008). For stages b, c and d, it is necessary to determine the conditions of mineral salts, carbohydrates, vitamins, growth regulators in the culture medium and the incubation environment (Puente-Garza et al., 2017).
The quality of the micropropagated plant influences the success of its acclimatization. In relation to stage d, the ability of tissues to form adventitious roots depends on endogenous factors (genotype, physiological condition, etc.) and exogenous factors (substrate, relative humidity, temperature, irradiance). In order for the shoots to develop roots, they are established in culture media (CM) without growth regulators (GR) or with an auxin-type GR.
During the in vitro rooting of A. angustifolia (Enríquez-Valle et al., 2005) and A. potatorum (Bautista-Castellanos et al., 2020) shoots, when established in CM with auxins, they develop more roots in less time. In both species, shoots in CM with the MS (Murashige and Skoog, 1962) mineral salts at 75% had a better rooting response compared to shoots in CM with the MS salts at 100%. Miguel-Luna et al. (2013) reported that shoots of A. americana var. oaxacensis established in CM with 66% MS salts formed 7.3 adventitious roots on average, a number 15% higher than the roots formed in shoots established in CM with 100% inorganic salts.
The concentration of solutes in the CM, mainly inorganic salts and sucrose, determines its osmotic potential (Ψ), which influences the formation, quantity, and growth of roots in shoots since levels lower than -0.3 MPa inhibit root formation (Cárdenas-Lara and Villegas-Monter, 2002).
In vitro propagated plants have thin leaves with herbaceous consistency, with little cuticle development, inefficient roots, high stomatal density and stomata with little control of opening and closing. When these plants are extracted from the in vitro culture to an environment with lower relative humidity, they have difficulty controlling water loss, being exposed to excessive wilting, in addition to presenting low photosynthetic activity (Pospíšilová et al., 2000; Pospíšilová et al., 2007; Sosa-Castillo et al., 2014).
Micropropagated plants of A. americana var. oaxacensis, during their acclimatization in greenhouses, replaced several leaves that they had formed during their in vitro culture with new leaves with different characteristics related to their adjustment to the ex vitro environment (Cruz-García et al., 2017). Micropropagated agaves must have morphological and physiological characteristics that, when large quantities of plants are extracted from the CM, make it easier for them to adapt to the ex vitro environment, achieving high levels of survival and growth (Miguel-Luna et al., 2013; Enríquez-Valle et al., 2016).
Authors such as Pospíšilová et al. (1999) described that plants micropropagated during the first three to four weeks of acclimatization stop their growth and even reduce their size due to organ senescence. It is argued that these leaves die because they do not have the capacity to make changes related to their adjustment to the ex vitro environment. It is desirable that the plant grown in vitro develops organs that persist and are efficiently functional during and after acclimatization. In the micropropagation of Musa, Texeira-da Silva et al. (2005) subjected in vitro cultures of Musa and Cymbidium in the rooting stage to a process of pre-acclimatization or pre-adaptation by exposing them to decreased solar radiation by partial shade, environmental conditions with lower relative humidity. The research aimed to evaluate the effect of the concentration of mineral salts of the MS medium and IBA auxin in the culture medium on the rooting of A. nussaviorum shoots, as well as the incubation environment on the morphological characteristics of the plants.
The work was conducted in the plant tissue culture laboratory and in a greenhouse at the Technological Institute of the Valley of Oaxaca in the municipality of Santa Cruz Xoxocotlán, Oaxaca. In vitro cultures were obtained from clusters of A. nussaviorum shoots heterogeneous in size in the propagule multiplication stage.
From each cluster, shoots with 3 to 4.5 cm length of the largest leaf were selected, separated individually and established in 160 cm3 bottles containing 20 ml of one of the nine variants of sterilized CM with gel consistency, prepared with: distilled water, 1 mg L-1 thiamine-HCL, 25 g L-1 sucrose, 100 mg L-1 myo-inositol; MS (Murashige and Skoog, 1962) mineral salts in three different dilutions (60, 80 and 100%), indole-3-butyric acid (IBA) in three different concentrations (0, 0.5 and 1 mg L-1), pH adjusted to 5.8 before adding 5.7 g L-1 of agar. Two shoots were established in each culture bottle, the lid was placed, and the bottle was sealed with adhesive polyethylene.
During the first 29 days of the rooting stage, all cultures were incubated in the laboratory, exposed to LED lighting at 35 μmol m-2 s-1 in photoperiods of 16 h and 8 h of darkness, temperature in the range of 15-28 °C. After that time, half of the cultures of each variant of CM were transferred to a greenhouse environment to be exposed for the remaining 21 days to lighting with solar radiation reduced by means of a double layer of 40% shade mesh, while the other half of the cultures remained in the laboratory with LED lighting.
When the shoots were established in the rooting medium, data on height and number of leaves were taken and the shoots that had roots and the number of adventitious roots were recorded daily during the 50 days of this stage. At the end of this stage, the plants were extracted from the culture medium and the number of unfurled leaves, the length and width of the largest leaf, stem diameter, and number of roots were recorded.
The experiment was established according to a completely randomized design, which, in the first 29 days of this stage, had a 3 × 3 factorial treatment arrangement, three levels of the mineral salt concentration factor, three levels of the IBA concentration factor and had nine treatments for days 30 to 50 of the rooting stage, the treatment arrangement was factorial of 3 × 3 × 2, which included the levels of the aforementioned factors and the incubation environment factor with two levels (laboratory and greenhouse), so there were 18 treatments.
The experimental unit was a shoot and there were 12 replications per treatment. To compare the percentages of shoots that formed roots, the experimental unit was a group of four shoots and there were six and three replications per treatment on days 29 and 50 of the experiment, respectively. The data in percentage for analysis were transformed into arcsine. The data were subjected to analysis of variance and comparison of means using Tukey’s test (α≤ 0.05).
At the beginning of the rooting stage, the shoots of the different groups had 3.4 to 4.5 leaves and were 3.6 to 4.4 cm tall, which, in each case, were not significantly different magnitudes, indicating that the plant material that was distributed in the different treatments was relatively homogeneous. Eight days after the shoots were established in the culture medium, the first shoots with adventitious roots were observed. Of the groups of shoots that were established in the different variants of CM, after 29 days of incubation in laboratory conditions, between 58.33% and 83.33% of them had roots (Figure 1 A).

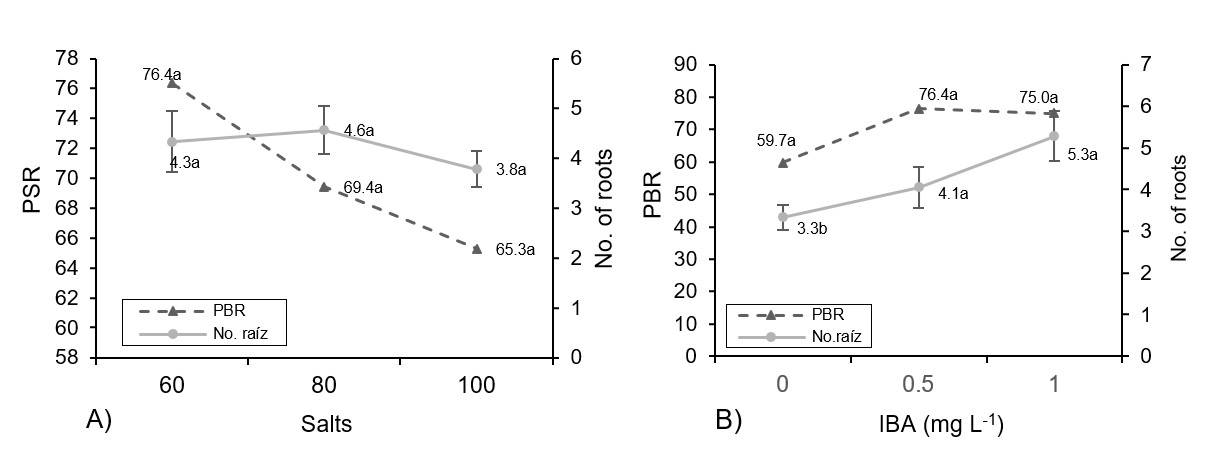

Shoots in CM with 80% mineral salts (MS) and 1 mg L-1 IBA formed 7.5 adventitious roots, three times the number of roots of shoots in CM with 100% MS without IBA. The lowest percentages of shoots with roots were those in CM with the 100% MS mineral salts and without IBA. Ordering the variables according to factor levels, the highest percentage of shoots with roots (PSR) was in CM with 60% MS salts and 0.5 mg L-1 IBA, while the shoots with the highest number of roots were in CM with 60% MS salts and 1 mg L-1 of IBA (Figure 1B).
In some shoots, roots were observed at eight days, while in other shoots, roots were observed up to 50 days. In other species, A. tequilana (Monja-Mio et al., 2020), A. angustifolia in CM with 50% MS inorganic salts and 0.025 mg L-1 of 2,4-D (Sánchez et al., 2020) and A. fourcroydes (Garriga et al., 2010) are reported to have formed roots in 100% of shoots. Likewise, Bautista-Castellanos et al. (2020) report that, in Agave potatorum Zuc shoots, adventitious roots were observed between 13 and 37 days of incubation.
Regarding the shoots that were established in CM with IBA and inorganic salts at 75% concentration, 95% of them formed adventitious roots. The data of the present study coincides with previous work in that shoots had a better adventitious root formation response when they were established in CM with low concentrations (60 or 80%) of mineral salts.
After 50 days of incubation in the rooting stage, analyses of variance (Table 1) showed that mineral salt concentrations had significant effects (p≤ 0.03) on the number of leaves; levels of indole-3-butyric acid (IBA) concentration factor had significant effects on root number (p≤ 0.01) and root length (p≤ 0.03), while the levels of the incubation condition (IC) factor had significant effects on plant height (p≤ 0.0002).
[i] SV= sources of variation; DF= degrees of freedom; CV= coefficient of variation; IBA= indole-butyric acid; IC= incubation condition; PSR= percentage of shoots with roots (data transformed to arcsine); FNL= final number of leaves; FNR= final number of roots; RL= root length; FHEI=final height; SD= stem diameter; ns= not significant; *= significant (p> 0.05); **= highly significant (p≤ 0.01).
The interaction of mineral salts-IBA-incubation conditions had a significant effect (p≤ 0.01) on the number of leaves. Aguilar-Jiménez and Rodríguez de la O (2018) reported that shoots of A. marmorata grown in 100% MS CM and with 0.3 or 10 mg L-1 of IAA formed 4.1 and 4.9 adventitious roots on average. In contrast, shoots in CM with 3 or 10 mg L-1 of IAA formed roots with 8.2 and 9.3 cm in length, respectively, highlighting the importance of the type and concentration of auxin.
Auxins induce the formation and development of roots in shoots, and the amount and type of auxin and the response of the explant depends on the species to be worked on (George et al., 2008). The use of IBA in culture media has been shown to be efficient in inducing the rooting of shoots of A. potatorum (Bautista-Castellanos et al., 2020), A. angustifolia (Enríquez-Valle et al., 2005) and Agave americana (Miguel-Luna et al., 2013).
At the end of the shoot rooting stage, plants had 3.7 to 5.8 leaves, 2.7 to 7.9 roots, 1.2 to 4.9 mm in root length, 5.6 to 7.9 cm in height, and 4.7 to 5.8 mm stem diameter (Table 2). All shoots incubated in the laboratory in culture media with 60% MS salts with 0.5 or 1 mg L-1 IBA had roots.
[i] IS= concentration of inorganic salts; IBA= indole-butyric acid; IC= incubation condition; SR= shoots with roots (%); L= laboratory; Gr= greenhouse; FNL= final number of leaves; FNR= final number of roots; FHEI= final height; RL= root length; SD= stem diameter; in each column, means with the same letter are not significantly different (Tukey, 0.05). Averages ± standard error are shown.
All shoots incubated in greenhouses, which were in CM with 60% MS salts and 1 mg L-1 IBA or in CM with 100% MS salts and 0.5 mg L-1 IBA, formed adventitious roots. Enríquez-Valle et al. (2016) report that 93.6% of A. potatorum shoots established in CM with 50% MS mineral salts and 1 mg L-1 IBA and incubated under fluorescent lighting in the laboratory and solar radiation in the greenhouse had formed roots at 28 days of incubation.
During incubation, the quality of light provided by artificial lighting influences physiological and morphological characteristics. In the present work, the light intensity provided by the LED lamps was 35 μmol m-2 s-1, without variation; in contrast, in the incubated cultures exposed to solar radiation decreased by shade mesh, during the second half of the rooting period, the irradiance was very variable that, at noon, it was at 400 μmol m-2 s-1, much higher light intensity and with a wider spectrum of wavelengths compared to the artificial lighting provided in the laboratory.
In the plants in vitro in the pre-acclimatization stage and incubated in the greenhouse, after a week in this condition, their leaves changed coloration on the underside, they went from a homogeneous green tone to areas with reddish coloration that turned purple after the three weeks of pre-acclimatization; likewise the leaf blades were unfolded, slightly concave towards the beam, had thorns at the edges, and showed a more rigid appearance.
On the other hand, the plants that remained in the laboratory retained their leaves with a more homogeneous green coloration and they were larger with few thorns on the edge of the leaf blade. According to Peng et al. (2008), the reddish and purple coloration is due to the presence of anthocyanins, which are secondary metabolites that protect the leaves and the photosynthetic apparatus from damage caused by high light intensity.
The characteristics of plants due to the in vitro environment in which they are obtained could have consequences in the later stage of acclimatization and affect their adaptation in an ex vitro environment. Teixeira-da Silva et al. (2005) describe that, during the in vitro rooting of Musa shoots, they were subjected to pre-acclimatization conditions and the plants thus obtained developed greater vigor, pigmentation, photosynthetic activity, and waxy cuticle development.
Plants with these characteristics, when extracted from in vitro culture and established in containers with substrate and ex vitro environment, adapt better than plants from in vitro cultures incubated all the time in the laboratory with artificial lighting. Souza et al. (2021) describe that, in the micropropagation of Cattleya warneri T. Moore, in vitro cultures incubated in the laboratory had leaves that were 30% less thick compared to plants from cultures incubated in the greenhouse.
In in vitro cultures of Vitis vinifera L. (Li et al., 2017) that were exposed to lighting of different wavelengths: white, blue, green, and red, it was shown that plants express different groups of genes that affect their physiological performance and morphology. Borges et al. (2011) research reported that plants of Dendranthema grandiflora Tzevele cv. Rage micropropagated from in vitro cultures exposed to solar radiation in the pre-acclimatization stage presented thicker leaves, greater leaf area, high stomatal density and more developed roots, and improved their photosynthetic capacity.
In the present work, Agave nussaviorum plants that were obtained in culture media in which the concentration of mineral salts was reduced and IBA was incorporated and that were incubated exposing them to solar radiation during part of the rooting time had appropriate morphological characteristics that ensure greater survival during ex vitro acclimatization. In addition, the amount of inorganic salts in the culture medium was reduced and incubating with solar radiation is an alternative to reduce micropropagation costs.
All agave shoots that were established for in vitro rooting in culture media with 60% inorganic salts formed adventitious roots compared to shoots in culture media with 80 and 100% concentration of inorganic salts. Shoots established in culture medium with the IBA auxin formed more adventitious roots than shoots in culture medium without auxin. The best condition for rooting A. nussaviorum shoots was in culture medium with 60% MS inorganic salts and 0.5 or 1 mg L-1 of IBA.
The shoots incubated in the laboratory developed higher than the shoots incubated in the greenhouse, but the latter developed thicker and stiffer leaves, purple pigmentation on the underside, morphological characteristics that would facilitate their adaptation in an ex vitro environment. Therefore, the pre-acclimatization process in the greenhouse is recommended since it improves the quality of the plants in vitro.
Bautista-Castellanos, A. I.; Enríquez-Valle, J. R.; Velasco-Velasco, V. A. and Rodríguez-Ortiz, G. 2020. Enraizado de brotes in vitro y aclimatación de plantas de Agave potatorum Zucc. Ecosistemas y Recursos Agropecuarios. 7(3):1-13. Doi: https://doi.org/10.19136/era.a7n3.2618.
Borges, D. I.; Oliveira, M. C.; Dos Santos-Penoni, E.; Pereira-De Padua T. R.; Tavares-Braga, F. and Pasqual, M. 2011. Micropropagation of chrysanthemum (Dendranthema grandiflora Tzevele cv. rage) under natural and artificial light in different concentration of the culture media. Plant Cell Cult Microprop. 7(1):1-8.
Enríquez-Valle, J. R.; Estrada-Silias, A.; Rodríguez-Ortiz, G.; Velasco-Velasco, V. A. y Campos-Ángeles, G. V. 2013. Sustrato y dosis de fertirriego en la aclimatización de vitroplantas de Agave americana var. Oaxacensis. Revista de la Facultad de Ciencias Agrarias Uncuyo. 45(2):341-348. Doi: 10.4067/S0718-16202016000200009.
Li, C. X.; Xu, Z. G.; Dong, R. Q.; Chang, S. X.; Wang, L. Z.; Khalil-Rehman, M. and Tao, J. M. 2017. An RNA-Seq analysis of grape plantlets grown in vitro reveals different responses to blue, green, red led light and white, fluorescent light. Frontiers in Plant Science. 8(78):1-16. Doi: https://doi.org/10.3389/fpls.2017.00078.
Monja-Mio, K. M.; Olvera-Casanova, D.; Herrera-Herrera, G.; Herrera-Alamillo, M. A.; Sánchez-Teyer, F. L. and Robert, M. L. 2020. Improving of rooting and ex vitro acclimatization phase of Agave tequilana by temporary immersion system (BioMINT™). In vitro Cellular & Developmental Biology Plant. 56:662-669. https://doi.org/10.1007/s11627-020-10109-5.
Peng, M.; Hudson, D.; Schofield, A.; Tsao, R.; Yang, R.; Gu, H.; Bi, Y. and Rothstein, S. J. 2008. Adaptation of Arabidopsis to nitrogen limitation involves induction of anthocyanin synthesis which is controlled by the NLA gene. Journal of Experimental Botany. 59(11):2933-2944. Doi: 10.1093/jxb/ern148.
Pospíšilová, J.; Haisel, D.; Synková, H.; Čatský, J.; Wilhelmová, N.; Plzáková, Š.; Procházková, D. and Šrámek, F. 2000. Photosynthetic pigments and gas exchange during ex vitro acclimation of tobacco plants as affected by CO2 supply and abscisic acid. Plant Cell, Tissue and Organ Culture. 61:125-133.
Puente-Garza, C. A.; Meza-Miranda, C.; Ochoa-Martínez, D. and García-Lara, S. 2017. Effect of in vitro drought stress on phenolic acids, flavonols, saponins, and antioxidant activity in Agave salmiana. Plant Physiology and Biochemistry. 115:400-407. Doi: https://doi.org/10.1016/j.plaphy.2017.04.012.
Silos-Espino, G.; González-Cortés, N.; Carrillo-López, A.; Guevara-Lara, F.; Valverde-González, M. E. and Paredes-López, O. 2007. Chemical composition and in vitro propagation of Agave salmiana “Gentry”. Journal of Horticultural Science & Biotechnol. 82(3):355-359. Doi: http://dx.doi.org/10.1080/14620316.2007.11512242.
SIAP. 2021. Sistema de Información Agroalimentaria y Pesquera. Anuario Estadístico de la Producción Agrícola 2013 en México. Sistema de Información Agroalimentaria y Pesquera de la Secretaría de Agricultura, Ganadería, Desarrollo Rural, Pesca y Alimentación. México.https://www.gob.mx/siap
Souza, F. L.; Leal, G. A.; Silva, C. V.; Moura-Assis, F. A. M.; Walter, R.; Massi, F. T.; Rangel-Silva, J.; Amaral, G. G.; Pereira, R. W.; Vendrame, W. A. and Campostrini, E. 2021. Better light spectral quality and thermal amplitude inside the greenhouse stimulate growth and improve acclimatization of in vitro grown Cattleya warneri T. Moore. In vitro Cellular and Developmental Biology-Plant. 57:883-896. Doi: https://doi.org/10.1007/s11627-021-10162-8.
