elocation-id: e3146
One of the most commonly used fungi in pest control, which has a wide range of hosts, is Beauveria bassiana. This entomopathogen has adapted to different environments and can be found in several places, so in the present work, 60 soil samples were collected in 2020 in Acatlán de Pérez Figueroa, Oaxaca, by means of Galleria mellonella, used as bait for its isolation. Five isolates were obtained from this procedure, which were evaluated in larvae of Galleria mellonella at 24, 48, 72, 96, 120, 144, and 168 h in order to know their efficacy in mortality and mycosis. In the methodology, the DNA of the fungi was extracted and the ITS region of the 5.8S rRNA gene was amplified by PCR, the product was sequenced and the sequences were compared with others existing at the National Center for Biotechnological Information. The result was one isolate of Beauveria pseudobassiana and four of Beauveria bassiana, of which isolate 11 showed 100% mortality and mycosis at 96 h, unlike the commercial isolate and the control, which needed an additional 72 h to kill all larvae, in addition to showing 20% and 60% of mycosis, respectively. The time of 96 h was significantly different (p≤ 0.05) because during this time, most of the larvae died and mycosis occurred. Identifying entomopathogenic fungi and conducting studies of their effectiveness in larvae facilitates the start of new research experiments.
Beauveria bassiana, Galleria mellonella L., ADN, efficacy, isolate, time.
The biological effectiveness of microorganisms for pest control is of great importance when it is sought to prevent, repel, or reduce the damage they cause to crops (Castro and Martínez, 2019). This effectiveness involves the action of organisms such as entomopathogenic fungi, which were the first microorganisms to be observed as causing diseases in insects since it was possible to see their growth on the insects’ bodies (Van Driesche et al., 2007). Such is the case of Beauveria bassiana, known since ancient times as white muscardine, which was one of the first entomopathogenic fungi used as a biological insect controller (Barbosa et al., 2017; Barbosa et al., 2018).
This fungus can cause disease without being ingested since it can enter through the cuticle and invade the internal cavity, attacking fatty tissues and organs, so the insect stops feeding, dies and the fungus multiplies inside it and after a period of 4 to 10 days after infection, it dies (Serna-Domínguez et al., 2019; Pacheco et al., 2020). The fungus Beauveria bassiana has the characteristic of presenting colonies with a velvety or powdery white appearance and as time passes, it turns yellowish (Orduño-Crúz et al., 2011).
The genus Beauveria is currently used for the control of several pest species, such as; pepper weevil, banana weevil, cotton aphid, melon aphid, whitefly, coffee berry borer and coffee bean weevil, which is why it is considered a generalist as it attacks various insects (Pacheco et al., 2020). Nonetheless, not all species of this genus have the same effectiveness in pest control, so it is necessary to know the biological effectiveness of isolates before using them for this purpose (Ríos et al., 2020).
In this regard, there are insects such as Galleria mellonella L. that have the advantage of surviving and reproducing easily in captivity when they are in the larval stage, making them ideal for establishing bioassays and generating valuable results in hours (Jorjao et al., 2018; Kavanagh and Sheehan, 2018). Thus, in the present research work, soil was sampled and fungi of the genus Beauveria were identified, the biological effectiveness of which was evaluated with the use of larvae of Galleria mellonella L.
Collection of soil samples and isolation of native fungi
A total of 60 samples of soil cultivated with sugarcane were collected in Acatlán de Pérez Figueroa, Oaxaca. The sampling was carried out in three seasons in 2016, in which 300 g of each sample was collected in Ziploc bags, which were labeled and transferred in coolers to the insect pathology laboratory of the College of Postgraduates, where they were isolated. To isolate entomopathogenic fungi, the trap insect technique was used (Zimmermann, 1986), for which soil samples were placed in cups 10 cm high by 5 cm in diameter, in which five larvae of Galleria mellonella were placed and they were monitored until the larvae passed to the pupal stage.
In cups with soil contaminated with Beauveria spores, larvae with white mycelium were observed and after five days, the fungus was isolated from these larvae in the sabouraud dextrose agar (SDA) medium (Bioxon®) and incubated at 32 °C + 2. All grown fungi were placed in 20 ml vials with SDA medium and saved for DNA amplification by a polymerase chain reaction (PCR) test.
DNA extraction by PCR was done in the laboratory of the Faculty of Agricultural and Livestock Sciences of the Meritorious Autonomous University of Puebla (BUAP, for its acronym in Spanish) in 2020. For this purpose, five isolates with Beauveria morphological characteristics were developed on cellophane paper adhered to the surface of the SDA culture medium for five days at 30 °C + 2. The mycelium obtained was harvested with a spatula and placed in 1.5 ml vials and then lyophilized for 24 h.
Subsequently, this mycelium was macerated with a micro pestle and liquid nitrogen in 1.5 ml vials and the instructions of the kit (Qiagen®) manufacturer were followed to extract the DNA, which was visualized in an agarose gel and a transilluminator (UVP, Model 3UV-LMS26), each DNA sample obtained was stored in a refrigerator at 7 °C. For the amplification of the ITS region of the 5.8S rRNA gene by PCR, the primers ITS1: 5’-ATTACCGAGTTTTCAACTCCC-3’ and ITS2: 5’-ACCTGATTCGAGGT CAACGTTC-3’ (White et al., 1990) and a kit (Promega madison) were used, according to the procedure described by Rehner and Bunkley (2005).
The reaction mixture was prepared to a final volume of 50 μl and included 0.2 μM of each primer; 20 mM TrisHCl; 50 mM KCl; 2.5 mM MgCl2; 0.1 mM of each deoxynucleotide (dATP, dCTP, dGTP, and dTTP); 1 U Taq DNA polymerase and 50 ng of genomic DNA. Samples were amplified by a program of 15 s at 94 °C, followed by 40 cycles at 94 °C for 15 s, 50 °C for 30 s, 72 °C for 30 s, and a final extension of 7 min at 72 °C. The amplified product was sequenced by Macrogen Laboratories in Korea. The sequences were edited with the BioEdit program version 7.1.9 (Hall, 1999) and the phylogenetic tree was generated with the Neighbor-joining method with the Mega program version 3.6 (Tamura et al., 2013).
To establish the bioassay, concentrations of 1x106 spores ml-1 of each identified isolate were prepared, a commercial strain of Beauveria bassiana (PHC) and a control were also used, each of these was used to inoculate 12 larvae distributed on six circles of Sanita paper; that is, two larvae per circle of paper moistened with 300 μl of sterile distilled water. All dishes with larvae were placed at room temperature and the number of live larvae, number of dead larvae, and number of larvae with mycosis were recorded at 24, 48, 72, 96, 120, 144, 168.
The experiment was completely randomized with seven treatments (five compared isolates plus one commercial isolate and one control), where the experimental unit was a larva and it was repeated twice over time to reduce the standard error that could be generated in the statistical analysis and obtain reliable results. With the results obtained from the experiment, a statistical analysis was performed with the SAS statistical package for Windows 9.0 in a factorial arrangement (two factors; factor= isolate and factor= time to death and mycosis). A comparison of means was carried out with the Tukey test to determine if there was a significant difference between the results of the variables (number of dead larvae and number of larvae with mycosis).
A total of five isolates (6, 7B, 11, 18, 21) were obtained from 60 analyzed samples, which presented morphological characteristics that agree with the description of Beauveria by Humber (1996); Bustillos (2001); Rodríguez and Del Pozo (2003) in PDA medium. The mycelium had a white shade, with a soft, powder-like texture. The growth of each of the isolates was not uniform, while the shapes of the colonies were raised and thin. Under the microscope, the conidiogenous cells presented denticulated and extended apex, in repeated shapes that grew into a conidium just below the new conidium. The conidia were round in shape and adhered to the branched conidiophores.
It was possible to amplify by PCR the DNA of 5 isolates with morphological characteristics of the genus Beauveria. The amplified DNA was visualized between 200 and 350 bp when compared to a molecular weight marker in a manner similar to the ITS region amplification results obtained by Rehner and Buckle (2005); Zhang et al. (2020) to identify species of Beauveria bassiana extracted from different regions and study their diversity.

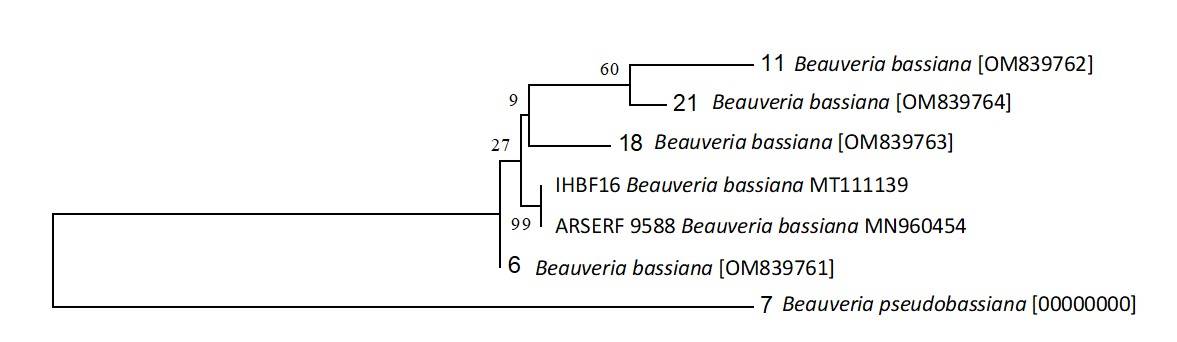

The numbers of accessions to the gene bank generated with the recording of the isolates are shown in Figure 1, which also shows the phylogenetic position of each of them within the tree, which was obtained from the ITS data of the 5.8S rRNA gene by the Neighbor-joining method (Tamura et al., 2013). The results of this analysis placed all isolates in the genus Beauveria with four isolates of Beauveria bassiana and one of Beauveria pseudobassiana (Figure 1).
This result showed a low number of isolates extracted, as well as low diversity, unlike the results obtained by Pérez-González et al. (2014); Medo et al. (2016); Serna-Domínguez et al. (2019), who found greater diversity of this genus in different sites; likewise, these authors mention the association of genetic groups of Beauveria bassiana with the geographical origin and types of habitats, factors that could be involved in the low diversity in this case because samples were only taken from one place.
On the other hand, according to Serna-Domínguez et al. (2019); Toledo et al. (2019), it is common to detect intraspecific diversity in this genus of fungus in addition to the dominance of some of them in agricultural soils, and although in this case diversity within the species was not analyzed, there was dominance of the species Beauveria bassiana in this study site.

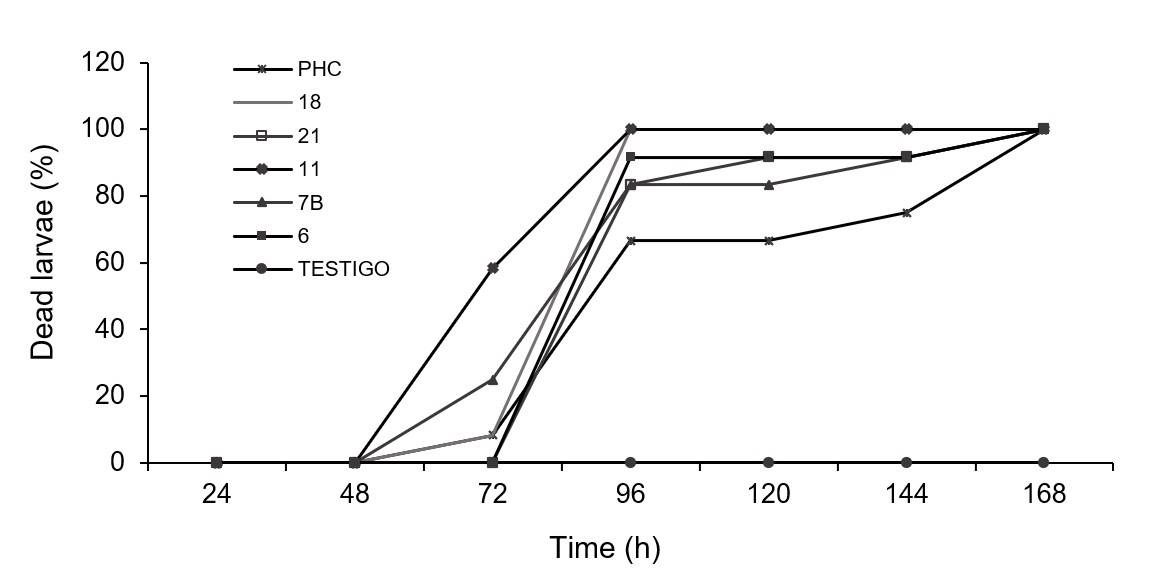

Mortality of Galleria mellonella caused by native isolates of Beauveria: the statistical analysis of the data showed a significant difference between the interactions of the factors, isolates x time (p≤ 0.05) and although a difference was observed in isolate 11 (100% mortality at 96 h) (Figure 2).
Statistically, no significant difference was observed between the isolates, but there was a significant difference with the control, even with the isolate identified as Beauveria pseudobassiana and the commercial isolate, which had 100% mortality up to 168 h. These results are consistent with those obtained by Ibrahim et al. (2016); Tuncsoy et al. (2020), who report mortality of up to 98 and 100% with 1x106 spores ml-1 of Beauveria bassiana after 1.7 days of application. Likewise, Vertyporokh et al. (2019) mention that Beauveria bassiana kills the infected host by mechanical destruction of its tissues with the growing mycelium and by the action of secreted secondary metabolites.
On the other hand, there was a difference in the times in which the larvae died (p≤ 0.05), where it was observed that the largest number of larvae died at 96 h; that is, when applying spores of the isolates on larvae of Galleria mellonella L., their effect should be expected after 72 h and greater mortality at 96 hours (Table 1).
Similar results were obtained by Alcazar (2007) in a study carried out with six isolates, in which mortality was at 72 h in all the isolates tested, except for one that presented greater enzyme activity at 48 h. Vertyporokh et al. (2019) also observed antifungal activity in the hemolymph of larvae infected with Beauveria bassiana at 96 h after infection.
In addition, according to the results achieved in this study, Vertyporokh et al. (2019); Boston et al. (2020); Zhang et al. (2020) mention that despite the fact that low genetic diversity has been found in Beauveria populations, the species show differences in their virulence, which is directly related to mortality, and those organisms whose defense mechanisms or virulence seem to be more effective can survive a certain dose of spores.

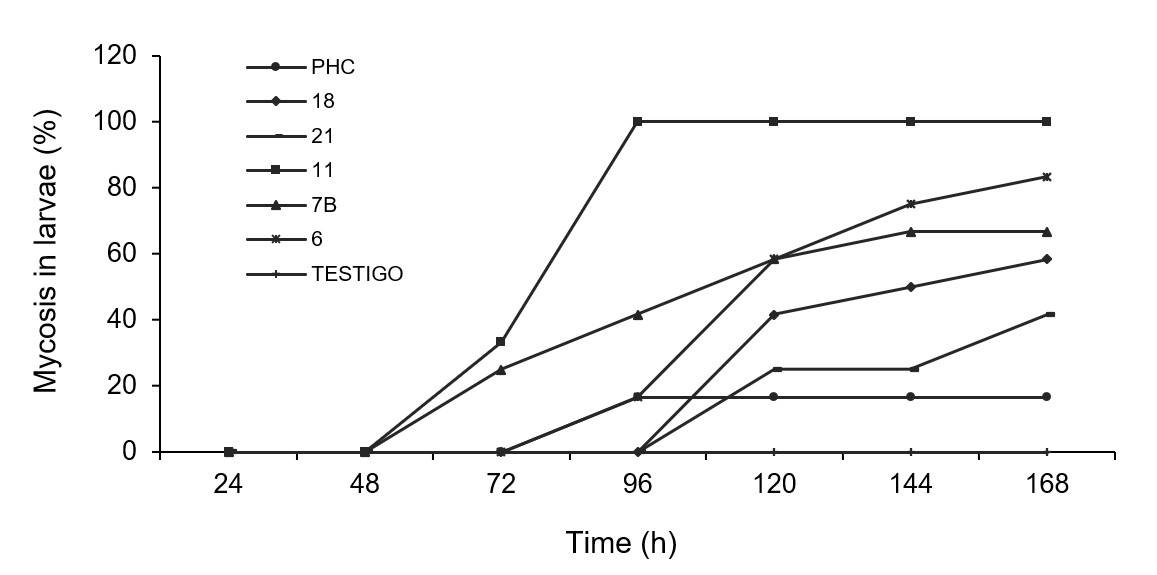

Mycosis of native isolates of Beauveria on larvae of Galleria mellonella: a significant difference was observed in the interactions of mycosis and time factors (p≤ 0.05). Likewise, the effect of mycosis of the isolates was also observed independently, where isolate 11, identified as Beauveria bassiana, was different (p≤ 0.05) from the control with 100% mycosis, it was even different from the commercial isolate PHC (20% mycosis) and Beauveria pseudobassiana (60% mycosis).
Some authors such as Hajek et al. (2018); Hajek et al. (2021) mention advantages in the mycosis capacity of fungal isolates as this represents an opportunity for spore dispersal to cause epizootics and reduce insect populations. On the other hand, there was a significant difference in the times in which larval mycosis occurred (p≤ 0.05) (Table 2) and the highest number of larvae with mycosis was observed at 96 h (Figure 3).
The mycosis time reported by Quintero-Zapata et al. (2020) was 48 h in Aedes aegypti mosquito larvae; nevertheless, this type of larvae is smaller in size and a different species, which may influence the mycosis period, unlike Galleria mellonella. In this regard, Rohrlich et al. (2018) according to a study carried out to measure severity of the disease based on mortality and mycosis, observed a difference in mycosis that depended on the range of hosts of each species of Beauveria, therefore they suggest variation in the time of mycosis between different types of insects.
Beauveria bassiana and Beauveria pseudobassiana isolates may have differences in their ability to cause death in Galleria mellonella larvae, even between isolates of the same Beauveria bassiana species. In this way, by knowing these differences, we can select those isolates that have potential for the control of other larvae. Likewise, carrying out identification and mortality studies over time with native isolates is of great importance since, according to these results, it is possible to have an effective control of insects in the region, in addition to serving as a basis for the research of new experiments.
Alcazar, P. A. G. 2007. Obtención de mutantes de Beauveria bassiana sobre productoras de proteasas. Universidad Autónoma de Nuevo León. Facultad de Ciencias Biológicas. Tesis para obtener el grado de doctor en Ciencias con Especialidad en Biotecnología. San Nicolás de los Garza, Nuevo León. 7-60 pp.
P. A. G. Alcazar 2007Obtención de mutantes de Beauveria bassiana sobre productoras de proteasasUniversidad Autónoma de Nuevo León, Facultad de Ciencias BiológicasTesis para obtener el grado de doctor en Ciencias con Especialidad en BiotecnologíaSan Nicolás de los Garza, Nuevo LeónSan Nicolás de los Garza, Nuevo León760
Barbosa, P. R.; Angeli, A. L. F.; Mamprim, A. P. and Kusumota, B. A. 2017. Alternative phytosanitary products against to white muscardine in Bombyx mori L. (Lepidoptera: Bombycidae). Agricultural entomology. 84(1):1-7. Doi: 10.1590/18081657000642015. https://www.scielo.br/j/aib/a/7FkbXWgJYn3Vh93 PkHZ5xt/?lang=en&format=pdf.
Barbosa, T. D. S.; De Andrade, D. J.; Polanczyk, R. A. and Duarte, R. T. 2018. Susceptibility of Tetranychus ogmophallos (Acari: Tetranychidae) to Beauveria bassiana and Metarhizium anisopliae. Fla Entomol. 101(2):249-253. https://doi.org/10.1653/024.101.0215.
Boston, W.; Leemon, D. and Cunningham, J. P. 2020. Virulence Screen of Beauveria Bassiana Isolates for Australian Carpophilus (Coleoptera: Nitidulidae). Agronomy. 10(8):2-10. https://doi.org/10.3390/agronomy10081207.
Bustillo, P. A. E. 2001. Hongos en insectos y posibilidades de uso en el control biológico de plagas en Colombia. En: Uso de entomopatógenos en Colombia. Eds. Comité Regional de Cundinamarca SOCOLEN. 1ra . Ed. Publicado por Instituto de Ciencias Naturales. Bogotá, Colombia. 30-54 pp. https://www.researchgate.net/ publication/275462138-hongos-en-insectosy-posibilidades-de-uso-en-el-control-biologico-de-plagas-en-colombia.
Castro, L. M. A. y Martínez, O. J. W. 2019. Compatibilidad de Beauveria bassiana y Metarhizium anisopliae con Chrysoperla externa depredador de Trialeurodes vaporariorum. Chilean J. Agric. Anim. Sci. Agro-Ciencia. 35(1):38-48. https://www.scielo.cl/scielo.php?script=sci-arttext&pid=S0719-38902019000100038.
Hajek, A. E.; Diss-Torrance, A. L.; Siegert, N. W. and Liebhold, A. M. 2021. Inoculative Releases and Natural Spread of the Fungal Pathogen Entomophaga maimaiga (Entomophthorales: Entomophthoraceae) into US. Populations of gypsy moth, Lymantria dispar (Lepidoptera: Erebidae). Environmental Entomology. 50(5):1007-1015. https://academic.oup.com/ee/article/50/5/1007/6329249.
Hajek, A. E.; Steinkraus, D. C. and Castrillo, L. A. 2018. Sleeping Beauties: horizontal transmission via resting spores of species in the Entomophthoromycotina. Insects. 9(3):2-23. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC6165266/pdf/insects-09-00102.pdf.
Hall, T. A. 1999. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symposium. 41(1):95-98. https://www.academia.edu/2034992/BioEdit-a-user-friendly-biological-sequence-alignment-editor-and-analysis-program-for-Windows-95-98-NT.
Humber, R. A. 1996. Fungi-Preservation. In: Biological techniques in invertebrate pathology lacey LA. Ed. Academic Press. London. 269-279 pp. https://www.sciencedirect.com/book/9780123868992/manual-of-techniques-in invertebrate-pathology.
Ibrahim, A. A.; Mohamed, H. F.; El-Naggar, S. E. M.; Swelim, M. A. and Elkhawaga, O. E. 2016. Isolation and selection of entomopathogenic fungi as biocontrol agent against the Greater Wax Moth, Galleria mellonella L. (Lepidoptera: Pyralidae). Egypt J. Biol. Pest. Co. 26(2):249-253. https://www.researchgate.net /publication/306059663-isolation-and-selection-of-entomopathogenic-fungi-as-biocontrol-agent-against-the-greater-wax-moth-galleria-mellonella-l-lepidoptera-pyralidae.
Jorjao, A. L.; de Oliveira, F. E.; Leao, M. V. P.; Jorge, A. O. C. and De oliveira, L. D. 2018. Effect of Lactobacillus rhamnosus on the response of Galleria mellonella against Staphylococcus aureus and Escherichia coli infections. Arch. Microbiol. 200(3):383-389. https://repositorio.unesp.br/bitstream/handle/11449/175561/2-s2.085035143871.pdf;jsessionid=D5C559F229879A4BD784671CCEFD763F?sequence=1.
Kavanagh, K. and Sheehan, G. 2018. The use of Galleria mellonella Larvae to identify novel antimicrobial agents against Fungal species of medical Interest. J. Fungi. 4(3):1-13. https://www.mdpi.com/2309-608X/4/3/113.
Medo, J.; Michalko, J.; Medová, J. and Cagáň, L. 2016. Phylogenetic structure and habitat associations of Beauveria species isolated from soils in Slovakia. Journal of Invertebrate Pathology. 140(1):46-50. https://doi.org/10.1016/j.jip.2016.08.009.
Orduño-Cruz, N.; Guzmán-Franco, A. W.; Rodríguez-Leyva, E.; López-Collado, J.; Valdéz-Carrasco, J. M and Mora-Aguilera, G. 2011. Susceptibility of the cactus weevil Metamasius spinolae to Beauveria bassiana and Metarhizium anisopliae under laboratory and field conditions. Journal Applied Microbiol. 111(4):939-948. https://pubmed.ncbi.nlm.nih.gov/21722279/.
Pacheco, H. M. L.; Reséndiz, M. J. F. y Arriola, P. V. J. 2020. Organismos entomopatógenos como control biológico en los sectores agropecuario y forestal de México: una revisión. Revista Mexicana de Ciencias Forestales. 10(56):5-21. https://doi.org/10.29298/rmcf.v10i56.496.
Pérez-González, V. H.; Guzmán-Franco, A. W.; Alatorre-Rosas, R.; Hernández-López, J.; Hernández-López, A.; Carrillo-Benítez, M. G. and Baverstock, J. 2014. Specific diversity of the entomopathogenic fungi Beauveria and Metarhizium in Mexican agricultural soils. Journal of Invertebrate Pathology . 119(1):54-61. https://doi.org/10.1016/j.jip.2014.04.004.
Quintero-Zapata, M. S.; Flores-González, E. J.; Luna-Santillana, N.; Arroyo-González, C. and Gandarilla-Pacheco, F. L. 2020. Late effects of Beauveria bassiana on larval stages of Aedes aegypti Linneo, 1762 (Diptera: Culicidae). Brazilian Journal of Biology. 82(1):1-8. https://www.scielo.br/j/bjb/a/gWZ7hDm5R8vmcbyxHVQWgyf/? format=pdf&lang=en.
Rehner, S. A. and Buckley, E. 2005. A Beauveria Phylogeny inferred from nuclear ITS and EF1-α Sequences: Evidence for cryptic diversification and links to Cordyceps Teleomorphs. Mycologia. 97(1):84-98. http://dx.doi.org/10.3852/mycologia.97.1.84.
Ríos, D. R.; Vargas-Flores, J.; Sánchez-Choy, J.; Oliva-Paredes, R.; Alarcón-Castillo, T. y Villegas-Panduro, P. P. 2020. Beauveria bassiana y Metarhizium anisopliae como controladores compatibles y eficientes de insectos plaga en cultivos acuapónicos. Scientia Agropecuaria. 11(3):419-426. Doi: 10.17268/sci.agropecu.2020.03.14.
Rodríguez, D. A. y Del pozo, N. E. 2003. Aislamiento de hongos entomopatógenos en Uruguay y su virulencia sobre Trialeurodes vaporariorum (West). Agrociencia. 7(2):71-78. http://www.acuedi.org/ddata/5564.pdf.
Rohrlich, C.; Merle, I.; Mze Hassani, I.; Verger, M.; Zuin, M. and Besse, S. 2018. Variation in physiological host range in three strains of two species of the entomopathogenic fungus Beauveria. Plos One. 13(7):1-15. https://www.ncbi.nlm. nih.gov/pmc/articles/PMC6033404/pdf/pone.0199199.pdf.
Serna-Domínguez, M. G.; Andrade-Michel, G. Y.; Rosas-Valdez, R.; Castro-Félix, P.; Arredondo-Bernal, H. C. and Gallou, A. 2019. High genetic diversity of the entomopathogenic fungus Beauveria bassiana in Colima, Mexico. Journal of Invertebrate Pathology. 163(1):67-74. https://doi.org/10.1016/j.jip.2019.03.007.
Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A. and Kumar, S. 2013. MEGA6: Molecular evolutionary genetics analysis version 6.0. Molecular Biology and Evolution. 30(12):2725-2729. https://pubmed.ncbi.nlm.nih.gov/24132122/.
Toledo, A. V.; Franco, M. E. E.; Medina, R.; Marino de Remes, L. A. M. and Balatti, A. P. 2019. Assessment of the genetic diversity of Argentinean isolates of Beauveria bassiana (Ascomycota: Hypocreales) using ISSR markers. Journal of king saud University-Science. 31(4):1264-1270. https://doi.org/10.1016/j.jksus.2018.02.006.
Van Driesche, R. G.; Hoddle, M. S.; Center, T. D.; Ruíz, C. E.; Coronada, B. J. y Manuel, A. J. 2007. Control de plagas y malezas por enemigos naturales. Washington. U. S. D. A: 3-46. 1ra Ed. Forest Health Technology Enterprise Team (FHTET) USDA ; 1400 independence Avenue, SW, Washington, DC. 1-765 pp. https://www.fs.fed.us /foresthealth/technology/pdfs/vandriesche-control-y-plagas-web.pdf.
Vertyporokh, L.; Hulas, S. M. and Wojda, I. 2019. Host pathogen interaction after infection of Galleria mellonella with the filamentous fungus Beauveria bassiana. Insect Science. 27(5):1079-1089. https://doi.org/10.1111/1744-7917.12706.
White, T. J.; Bruns, T.; Lee, S. and Taylor, J. 1990. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. In: PCR Protocols: a guide to methods and applications. Ed. Academic Press, New York, USA. 315-322 pp. https://www.researchgate.net/publication/262687766-amplification-and-direct-sequencing-of-fungal-ribosomal-rna-genes-for-phylogenetics.
Zhang, Z.; Lu, Y.; Xu, W.; Sui, L.; Du, Q.; Wang, Y. and Li, Q. 2020. Influence of genetic diversity of seventeen Beauveria bassiana isolates from different hosts on virulence by comparative genomics. BMC Genomics. 21(451):2-12. https://doi.org/10.1186/s12864-020-06791-9.
Zimmermann, G. 1986. The “Galleria” bait method for detection of entomopathogenic fungi in soil. Journal of applied entomology. 102(2):213-215. https://doi.org/ 10.1111/j.1439-0418.1986.tb00912.x.
