Revista Mexicana Ciencias Agrícolas   volume 13   number 7   September 28 - November 11, 2022

DOI: https://doi.org/10.29312/remexca.v13i7.3070

Article

Genotype-environment interaction of yield in yellow corn
hybrids, using AMMI and SREG

María Corina Ponce-Encinas1

Fernando López-Morales

Julián Chura-Chuquija1

Enrique Hernández-Leal3

Gregorio Hernández-Salinas4

Agustín Aragón-García2

1Maize Research and Social Projection Program-La Molina National Agrarian University. Avenue La Molina s/n, Lima 12, La Molina, Lima, Peru. CP. 15026. (mcponce@lamolina.edu.pe; chura@lamolina.edu.pe).

2Sustainable Management of Agroecosystems-Institute of Sciences-Meritorious Autonomous University of Puebla-EcoCampus Valsequillo. VAL1 building, road to San Baltazar Tétela km 1.7, San Pedro Zacachimalpa, Puebla. CP. 72960. (agustin.aragon@correo.buap.mx).

3Experimental Field La Laguna-INIFAP. Boulevard José Santos Valdez 1200 Pte. Matamoros, Coahuila. CP. 27440. (hernandez.enrique@inifap.gob.mx).

4National Technological Institute of Mexico-Higher Technological Institute of Zongolica-Tezonapa Extension. Zongolica Highway to the Company s/n km 4, Tepetlitlanapa, Zongolica, Veracruz, Mexico. CP. 95005. (gregorio-hs@zongolica.tecnm.mx).

Corresponding author: (fernando.lopez@colpos.mx).

Abstract

It is indispensable for corn (Zea mays L.) plant breeding programs to select homogeneous materials, with high yield and with stable agronomic attributes; also, that they have a good adaptability in contrasting environments. The objective of the work was to evaluate the stability and genotype-environment interaction of the yield of 36 hard yellow corn hybrids, evaluated in seven environments of Peru, during 2016-2018, these materials were analyzed using the AMMI (additive main effects and multiplicative interaction) and SREG (site regression) models. The design used in each experiment was a 6×6 lattice with three repetitions, and the response variable was grain yield. A combined analysis of variance was performed, in which statistical differences between them (p≤ 0.05) were detected, then the Tukey mean test (p≤ 0.05) was applied, finally the AMMI and SREG models were run and the biplot graphs of each statistical model were obtained. Of the interaction between PC1 and PC2, AMMI explained 45.5% and 15.3%, respectively, and SREG with 59.8% and 12.2%, for the same components. The trilinear hybrids Dk-5005 and AG-01 outperformed the double-cross hybrids. The AMMI model detected the existing GE interaction in grain yield, and the SREG accurately grouped the assessment sites into six mega-environments. The three environments of La Molina and that of Huánuco identified the two hybrids (Dk-5005 and AG-01) with the highest grain yield (11.524 and 11.359 t ha-1, respectively).

Keywords: Zea mays, biplot graph, double and trilinear hybrids, stability and adaptability.

Reception date: March 2022

Acceptance date: July 2022

Introduction

In Peru, the harvested area of hard yellow corn (Zea mays L.) in 2018 was 246 594 ha, of which 80% was produced under rainfed conditions and the remaining 20% (1 265 072 t) with irrigation, with an average yield of 5 100 t ha-1 (MINAGRI, 2020). Grain yield is the most important characteristic to consider when conducting corn evaluations in different localities, as environmental effects (E) have the largest percentage of the sum of squares over genotypes (G) and genotype-environment interaction (GE) (Lozano-Ramírez et al., 2015; López-Morales et al., 2019). The GE interaction is the differential relative behavior shown by genotypes when evaluated in different environments (Vallejo and Estrada, 2002).

Therefore, when plant breeders look for genotypes with higher yields for different localities or environmental conditions, they face challenges such as stability and adaptability (Lozano-Ramírez et al., 2015). Stability is the ability of the genotype to behave consistently with high or low levels of yield across environments and adaptability is the ability of the genotype to manifest optimal performance under various environmental conditions (Vargas et al., 2016). Eberhart and Russell (1966) pointed out that stability is a genetic characteristic and that genotypes with broad adaptability have a low GE interaction; therefore, it is important to determine stability and adaptability for the selection and recommendation of Z. mays genotypes in specific environments (Gómez et al., 2018).

In addition to the above, environmental conditions change ‘year after year’, even in the same localities; therefore, it is advisable to evaluate various genotypes (experimental and commercial varieties). Such evaluations should be carried out in different localities and for several years, which will allow selecting the materials with the greatest stability and adaptability (Camargo-Buitrago et al., 2011). The most used models in the last two decades for the study of genotypic stability and adaptability across environments are that of additive main effects and multiplicative interaction (AMMI) and those of regression sites (SREG) (Farias et al., 2016).

The AMMI joins the analysis of variance with the analysis of principal components, with the assumption that the main products (G and E) are additive in nature and the GE interaction is multiplicative in nature (Cristiano et al., 2018), while the SREG eliminates the individual environmental effect (G + GE) to examine only the effect of the G and the GE interaction. The ability to discriminate, visualize the similarities and differences between test Es and Gs is elementary because it allows defining mega-environments, as well as the magnitude of the interaction within any genotype or locality (Ledesma-Ramírez et al., 2012).

Authors such as Dia et al. (2016); Yan (2016) have documented that both models (AMMI and SREG) complement each other, allowing a better interpretation through the biplot graphs (Cristiano et al., 2018; Fayeun et al., 2018). The graphical analysis of AMMI allows obtaining conclusions about the stability, the behavior of the genotype, the genetic difference between genotypes and the environments with an adequate yield, the SREG complements the environmental stratification of AMMI, generating mega-environments and identifying genotypes with an outstanding yield in each group. In both models, the relevant variable is yield, since it is the most affected by the GE interaction (Castillo et al., 2012; Lozano-Ramírez et al., 2015) because it is a polygenic quantitative characteristic.

For all the above, it is essential to generate knowledge that helps us discard experimental hybrids that do not meet certain characteristics such as yield, homogeneity (plant and ear heights, days to male and female flowering) and with certain agronomic attributes (such as number of rows, length and diameter of ear) and select those materials that are more yielding with stability and adaptability in contrasting environments. Therefore, the objective of this study was to evaluate the stability and adaptability of grain yield in 36 hard yellow corn hybrids adapted to the coastal and Sierra areas of Peru, using the AMMI and SREG models, under the hypothesis that the SREG allows identifying those materials with greater stability and adaptability in terms of grain yield.

Materials and methods

Genetic material

Of the 36 hard yellow corn hybrids evaluated, 29 were of double cross of yellow grain, crystalline texture and cylindrical ear, which originated from the lines of the CIMMYT; likewise, four genotypes: PM-212 (double-cross hybrid) and the experimental hybrids PM-9, PM-12 and PM-13. All the crosses of the 33 materials mentioned above were generated by the Corn Research and Social Projection Program (PIPS, for its acronym in Spanish), of the La Molina National Agrarian University (UNALM, for its acronym in Spanish), with geographical coordinates 12° 04’ 55” S and 76° 56’ 53” W, which is located at 241 masl, where the humid semi-warm climate prevails (SENAMHI, 2020). The three commercial controls evaluated were: DK-5005 (trilinear, of US origin, adapted to the conditions of Peru), AG-01 (trilinear, of Brazilian origin, with a wide adaptation) and XB-8010 (double-cross hybrid, of Brazilian origin, highly productive).

Location of experiments, design and experimental unit

In 2016, experiments were established with all hybrids in the localities of La Molina (LM-2016) and Cañete (CA-2016) in the coastal area, and in Huánuco (HU-2016) and Pillco Marca (PM-2016), belonging to the low sierra region. For the 2017 agricultural cycle, the evaluation was made in the localities of La Molina (LM-2017) and Huánuco (HU-2017) and for 2018 the hybrids were evaluated only in La Molina (LM-2018). The coastal area has a humid semi-warm climate and the low Sierra region a humid temperate climate (SENAMHI, 2020). Edaphoclimatic characteristics and agronomic management are shown in (Table 1).

Table 1. Agronomic management and conditions of the seven evaluation environments (2016-2018).

Environments

Province

Altitude (m)

Date sowing/harvest

Type of soil

Rainfall (mm)

T (°C)

Max

Min

La Molina (LM-2016)

Lima

241

16-04/15-11-16

Leptosol

10.8a

27.5

15.5

La Molina (LM-2017)

Lima

241

16-04/15-11-17

Leptosol

10.6a

26.7

14.3

La Molina (LM-2018)

Lima

241

16-04/18-11-18

Leptosol

10.4a

27.1

15.4

Huánuco (HU-2016)

Huánuco

1 894

03-10/15-03-17

Inceptisol

388.5b

26.5

8.2

Huánuco (HU-2017)

Huánuco

1 894

07-10/16-03-18

Inceptisol

384.9b

26

8.5

Pillco Marca (PM-2016)

Huánuco

1 930

09-10/20-03-17

Inceptisol

374.1b

26.7

7.9

Cañete (CA-2016)

Cañete

38

15-06/21-01-17

Fluvisol

11.4a

24.5

16.4

= annual average; a= sowing with initial irrigation and five supplemental irrigations; b= rainfed sowing with initial irrigation; Max.= maximum temperature; Min.= minimum temperature (during the sowing/harvest period).

The design used in all localities and years was a 6×6 lattice with three repetitions, the experimental unit consisted of two furrows six m long and 0.8 m wide. Three seeds per bush were sown at a distance of 40 cm and a thinning was carried out one month after sowing, leaving 64 plants per experimental plot, for a population density of 62 500 plants ha-1.

Fertilization and trial management

In the locality of La Molina (LM-2016, LM-2017 and LM2018) and Cañete (CA-2016), the fertilization formulas 190-160-160 and 210-80-00 (N-P-K, kg ha-1) were used, respectively, applying, at the time of sowing, all phosphorus and 50% of nitrogen and potassium (the latter element only for La Molina) 15 days after sowing (DAS) and the rest at the end of the cultivation work.

In the two localities, a preliminary irrigation and five supplemental irrigations were applied during the cultivation cycle. For Huánuco (HU-2016 and HU-2017) and Pillco Marca (PM-2016), the formula 220-115-82-21S-18Mg was used, applying 110 units of nitrogen and 100% of the other elements at 15 DAS and the nitrogen difference at 40 DAS, these localities were rainfed, with an irrigation at the beginning of sowing. In the second cultural work, for the control of weeds in the seven localities, the herbicides with active ingredient glyphosate and atrazine were applied separately, at doses of 1.5 and 1 kg ha-1, respectively, and for the fall armyworm [Spodoptera frugiperda (J. E. Smith)] the insecticide chlorpyrifos was used with a dose of 5 kg ha-1, which were independently diluted in 200 L of water.

Response variable

The grain yield (kg ha-1) was calculated with the formula described by Manrique (1997):

 .

Where: A= area of the plot; PS= percentage of shelling (grain weight between ear weight by 100); y= yield of the experimental unit in kg adjusted to 14% of moisture. The value 0.971 corresponds to the boundary coefficient which is a constant of the experimental unit.

Statistical analysis

With the grain yield data of the 36 hybrids in the seven environments, an analysis of variance and the Gollob test were performed, using the GLM procedure of SAS® version 9.0 (SAS Institute, 2012), when significant differences between hybrids (p≤ 0.05) were detected, the Tukey mean test (p≤ 0.05) was applied, in addition, AMMI and SREG models were applied to determine the effects of GE interaction, stability and adaptation (Castillo et al., 2012; Cristiano et al., 2018), with the same statistical package. Finally, a biplot graph was made for each statistical model to show the GE interaction, both biplots were generated with the first two principal components (PC1 and PC2).

Results and discussion

The analysis of variance showed significant statistical differences (p≤ 0.001) in all sources of variation for grain yield: environments (E), repetition*E, genotypes (G) and genotype-environment (GE) interaction, which explained 70.2, 0.5, 13.3, 16%, respectively, of the total sum of squares (Table 2). The inequality between corn genotypes and environments shows a wide genetic and environmental condition difference that occur ‘year after year’, respectively (Tadeo-Robledo et al., 2015; López-Morales et al., 2019). The significant statistical differences (Table 2) for the mean squares of all sources of variation in the analysis of variance and Gollob test coincide in significance with what was reported in the two models AMMI and SREG by (Fritsche-Neto et al., 2010; Lozano-Ramírez et al., 2015).

Table 2. Analysis of variance and Gollob test of the AMMI and SREG models for grain yield in 36 hard yellow corn hybrids in seven environments in Peru (2016-2018).

Source

DF

SS

MS

PC1, 2

DF1, 2

SS1

MS1

(%)1

SS2

MS2

(%)2

Environments (E)

6

2137.2

356.2***

CP1

40

222.7

5.5***

45.5

535.4

13.3***

59.8

Repetition*E

2

13.4

6.7***

CP2

38

74.9

1.9***

15.3

109.7

2.8***

12.2

Genotypes (G)

35

406

11.6***

CP3

36

66.4

1.8***

13.5

71.2

1.9***

7.9

GE

210

488.8

2.3***

CP4

34

51.6

1.5*

10.5

61.3

1.8***

6.8

Error

502

462

0.9

CP5

32

41.2

1.2

8.4

44.5

1.3*

4.9

*, ***= significance at p≤ 0.05 and p≤ 0.001, respectively; GE= genotype-environment interaction; DF= degrees of freedom; SS= sum of squares; MS= mean squares; PC= principal components; (%)= percentage of the SS of the interaction explained by the PC; 1= AMMI model; 2= SREG model.

For the AMMI and SREG models, the first four and five principal components (PC), respectively, were statistically significant (p≤ 0.001), which means that there is a statistical difference due to the effect of the GE interaction in multiplicative terms, where the sum of squares of the first five PCs explained 93.5% for AMMI and 91.9% for SREG of the total GE interaction, Table 2, lower results were found by Fritsche-Neto et al. (2010); Ndhlela et al. (2014) and in each of the models for corn crop, this difference may be due to the fact that they evaluated fewer genotypes and environments with respect to the present study. The first two principal components explained 60.9 and 71.1% of the variation in AMMI and SREG, respectively (Table 2), similar findings were reported by Castillo et al. (2012); Lozano-Ramírez et al. (2015) in each model (AMMI and SREG), who recorded values of 62.6 and 79% respectively.

Table 3 shows the average yield per hectare of the 36 corn hybrids in each environment. The highest yields were obtained by the commercial trilinear hybrids Dk-5005 (11.524 t ha-1) and AG-01 (11.359 t ha-1); on the contrary, the experimental hybrid 515×714 had the lowest yield with 8.045 t ha-1, this may be because this genotype is one of the 29 double hybrids that are not adapted for the evaluated areas, especially in the Sierra, where it obtained the lowest yields.

The 36 hybrids exceeded the national average yield of hard yellow corn (irrigation and rainfed), which is 5.1 t ha-1 (MINAGRI, 2020) and only 17 hybrids exceeded the overall average, which was 9.188 t ha-1, Table 3, among which the three commercial hybrids used as controls, the four commercial double-cross hybrids of the PIPS and 10 experimental double-cross materials stand out. The corn hybrid 580×575 had a grain yield of 10.042 t ha-1, ranking third in the average yield, being surpassed only by the two commercial trilinear hybrids Dk-5005 and AG-01, which surpassed the four PIPS hybrids and the control XB-8010.

The trilinear hybrids 30) Dk-5005 and 31) AG-01 had the best grain yields (p≤ 0.05), possibly because they have a high frequency of genes for adaptation with respect to the rest of the double hybrids between environments, which is in accordance with what was reported by Chura and Huanuqueño (2014); López-Morales et al. (2019), when evaluating genetically similar corn materials in Peru. Regarding the environments, the LM-2017 locality had the highest average yield with 12.65 t ha-1 of grain, followed by LM-2018 with 10.337 t ha-1 (the only two environments that exceeded the overall average of 9.188 t ha-1) while HU-2016 had the lowest value with 7.299 t ha-1 (Table 3).

The highest grain yields were expressed by the corn hybrids 30) Dk-5005 (11.524 t ha-1), 31) AG-01 (11.359 t ha-1), 27) 580×575 (10.042 t ha-1) and 34) PM-9 (9.989 t ha-1), but this characteristic changes considerably from one environment to another (Table 3), such behavior is due to the effect of the environment on the genotypes. Hybrids 30) Dk-5005 and 31) AG-01 showed the highest yields, which is consistent with what was found by (Chura and Huanuqueño, 2014) for Dk-5005, who reported that this material had the highest yield with 10.982 t ha-1 of grain in three localities in La Molina and one in Puerto Bermúdez, Peru.

Table 3. Means of yield in t ha-1 of 36 hard yellow corn hybrids, evaluated in seven environments in three provinces of Peru (2016-2018).

Hybrids

Environments

Mean

LM-2016

LM-2017

LM-2018

HU-2016

HU-2017

PM-2016

CA-2016

1) 529×508

10.126

14.531

11.207

7.24

7.953

8.113

7.106

9.468bcde

2) 685×684

8.69

11.266

8.588

7.292

8.381

7.644

6.769

8.376efg

3) 575×510

8.649

11.615

9.575

8.75

7.987

8.043

8.115

8.962bcdefg

4) 575×511

7.875

11.469

9.635

6.953

7.943

7.807

8.763

8.635cdefg

5) 515×714

7.85

11.138

8.73

7.344

7.278

7.285

6.693

8.045g

6) 722×714

9.355

12.107

8.822

8.021

8.358

10.008

7.822

9.213bcde

7) 532×531

8.378

11.674

8.793

7.708

7.473

8.051

8.608

8.669cdefg

8) 592×575

8.651

11.833

10.236

8.333

7.679

9.998

7.858

9.227bcde

9) 733×730

8.561

11.964

8.993

8.125

8.322

7.348

5.949

8.466defg

10) 725×723

8.514

12.723

10.275

6.042

8.15

6.891

7.288

8.555cdefg

11) 728×723

8.139

12.469

10.459

6.562

9.377

7.559

7.828

8.913bcdefg

12) 694×691

9.425

12.983

10.439

8.594

9.641

7.761

8.216

9.58bcd

13) 590×575

9.041

12.821

11.018

6.458

8.203

9.198

7.269

9.144bcdefg

14) 726×723

8.165

12.969

9.985

7.813

8.485

9.127

6.833

9.054bcdefg

15) 743×707

8.315

12.486

10.823

7.812

8.947

8.758

7.93

9.296bcde

16) 591×575

9.543

14.494

11.385

7.813

8.768

7.548

7.672

9.603bcd

17) 704×703

7.106

12.702

10.409

6.604

8.181

8.56

8.347

8.844cdefg

18) 513×531

7.79

11.359

9.441

7.188

8.535

8.507

6.78

8.514defg

19) 739×737

8.815

11.452

9.734

5.937

6.366

7.541

6.634

8.069fg

20) 687×684

8.849

13.135

10.7

6.927

8.673

9.695

8.221

9.457bcde

21) 635×578

8.207

11.336

9.343

6.615

6.966

8.778

8.422

8.524defg

22) 589×575

9.319

12.512

11.822

7.657

8.584

7.767

8.024

9.383bcde

23) 697×691

10.238

13.592

10.624

7.135

8.549

7.638

8.953

9.533bcd

24) 570×714

8.403

11.773

8.524

6.615

8.966

9.143

7.703

8.733cdefg

25) 729×723

8.791

13.836

9.947

6.719

8.298

8.288

7.751

9.09bcdefg

26) 736×730

8.829

12.036

10.533

7.292

8.558

9.203

7.247

9.1bcdefg

27) 580×575

10.7

13.104

14.088

7.083

8.155

9.14

8.024

10.042b

28) 742×737

8.48

11.564

8.807

6.823

8.732

7.891

7.103

8.486defg

29) 717×714

8.354

11.344

9.387

8.448

8.76

9.345

7.311

8.993bcdefg

30) Dk-5005

13.392

15.926

14.125

7.24

12.851

8.943

8.19

11.524a

31) AG-01

11.514

15.476

13.064

8.489

12.221

10.38

8.37

11.359a

32) XB-8010

8.687

10.934

9.365

7.761

9.399

10.328

7.885

9.194bcdef

33) PM-212

10.848

14.188

9.238

7.605

7.564

9.421

8.906

9.681bc

34) PM-9

11.257

13.35

10.796

7.292

9.684

8.958

8.584

9.989b

35) PM-12

10.061

13.526

12.065

6.302

8.61

9.583

6.725

9.553bcd

36) PM-13

9.933

13.741

11.16

6.198

9.874

8.017

7.548

9.496bcde

Mean

9.134c

12.65a

10.337b

7.299f

8.062d

8.557d

7.707e

9.188

From 01 to 29= experimental corns; PM= corn program (PIPS); LM= La Molina; HU= Huánuco; PM= Pillco Marca; CA= Cañete. Means of the genotypes and environments with equal letters do not differ statistically from the Tukey test (p≤ 0.05). With honest significant difference of 1.143 t ha-1 and 0.386 t ha-1 between genotypes and environments, respectively.

AMMI analysis

Figure 1 shows that corn hybrids 26) 736×730, 15) 743×707, 14) 726×723 and 25) 729×723 were the closest to the origin of the axes; that is, they were less influenced by GE (greater stability) (Vargas et al., 2016). All of them are experimental hybrids with average yields of 9.1, 9.296, 9.094 and 9.09 t ha-1, respectively, close to the average of the corn hybrids evaluated in this research (9.188 t ha-1).

Corn hybrids 30) Dk-5005, 31) AG-01, 36) PM-13, 27) 580×575, 32) XB-8010 and 21) 635×578 were the genotypes with the least stability (Figure 1), since they were concentrated away from the two-dimensional center. On the other hand, the hybrids 32) XB-8010, 6) 722×714 (9.213 t ha-1) and 29) 717×714 (8.993 t ha-1) showed low adaptability to the seven environments (Figure 1). The LM-2016 environment was the most stable and the other six environments evaluated in the present study are far from the origin (central part of Figure 1), indicating that they contributed the most to the GE interaction.

Authors such as (Vargas et al., 2016) indicated that in environments with angles < 90º, genotypes will preserve a similar spatial distribution, which occurred between environments LM-2016, LM-2017 and LM-2018. A similar situation with angles < 90º occurred between the environments HU-2016, PM-2016 and CA-2016. On the other hand, environments with angles greater than 90º do not order genotypes in the same way, as happened with HU-2016 and HU-2017, LM-2016 or LM-2018 and CA-2016 (Figure 1).

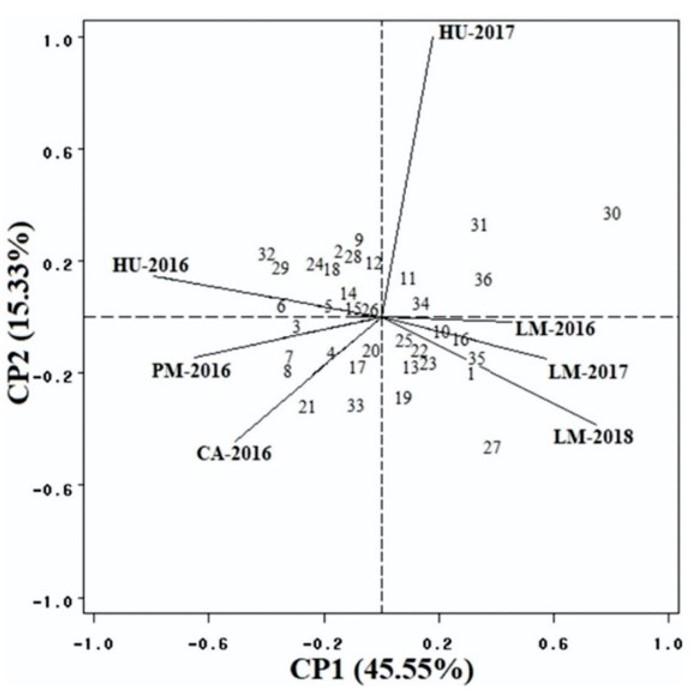

Figure 1. AMMI biplot with the first two principal components (PC1 and PC2) of the average yield of 36 hard yellow corn hybrids in seven environments in Peru.

The environments that are located at an angle of 180º order the corn genotypes in the opposite way, which makes it difficult to select through these environments because they are of contrasting conditions (Yang et al., 2009; Kandus et al., 2010), as happened in the environments LM-2016, LM-2017 and LM-2018 against HU-2016 (Figure 1), possibly because the first corn materials are from the coast and the other from the Sierra of Peru.

The vectors with the groups of the environments LM-2016, LM-2017 and LM-2018, as well as the environments HU-2016, PM-2016 and CA-2016 are too close to each other, which may be due to the edaphoclimatic similarity (fertilization, soil type, precipitation and temperature with minor differences). Thus, in the first case (the environments of La Molina), it is the same site, but evaluated in a different year (Table 1); that is, the fact that the environments are very close to each other in Figure 1 and in a similar quadrant (similar direction of the vectors) means that they are very similar to the GE. In the second case, the three environments belonged to the same year of evaluation (2016), which could be a determining factor for the proximity between them; results similar to the findings of the present work were found by (Castillo et al., 2012; López-Morales et al., 2019) under the same conditions.

SREG Analysis

The corn hybrid 30) Dk-5005 was the one with the highest yield (p≤ 0.05); while the hybrid 5) 515×714 had the lowest yield. The Dk-5005 hybrid was not only the one with the highest yield but also the one with the greatest adaptability and stability in the seven environments (Figure 2).

Other stable materials were the hybrids: 21) 635×578, 2) 685×684, 7) 532×531, 18) 513×531, 28) 742×737, 26) 736×730 and 12) 694×691, all experimental corns. Also, in environments, the length of the vector indicates the variability in yield explained in each environment and vice versa (Crossa et al., 2015).

On the other hand, six mega-environments (region with homogeneous environment for a crop species) were found (Figure 2) and where each mega-environment (between red lines in Figure 2) will locate hybrids with a high yield at the vertices that will form a polygon and all environments that are outside this polygon allow discrimination between hybrids (Yan et al., 2011; 2016).

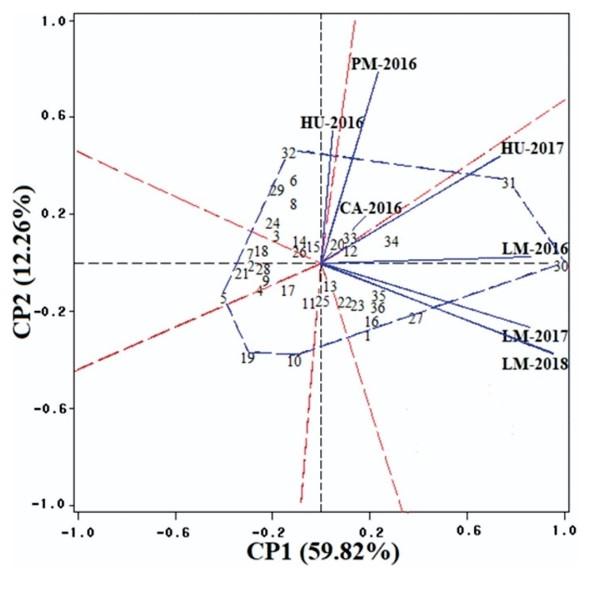

Figure 2. SREG biplot with the first two principal components (PC1 and PC2) of the average yield of 36 hard yellow corn hybrids in seven environments in Peru.

This happened with the mega-environment where the corn hybrid 30) Dk-5005 showed the highest yield between genotypes (11.524 t ha-1) and included the environments LM-2016 (the most stable of the four, but the only one that did not discriminate between genotypes), LM-2017, LM-2018 (the three environments with the best yields according to the Tukey test: 9.134, 12.65 and 10.337 t ha-1, respectively) and HU-2017 (8.062 t ha-1).

Other materials with good response in the same mega-environment, with the highest yields among the materials evaluated, were the corn genotypes 31) AG-01 and 27) 580×575 (experimental corn). Both Dk-5005 and AG-01 are trilinear hybrids with a high frequency of genes due to their genetic constitution of three lines, producing a high adaptive capacity for several areas, as indicated by the results of Chura and Huanuqueño (2014); López-Morales et al. (2019) with the materials of three lines in different regions of Peru.

The sites PM-2016 and CA-2016 were located in a mega-environment, but in this one there was no corn hybrid that excelled in yield, even though the PM-2016 environment discriminated between hybrids. Such behavior could be due to the large edaphoclimatic differences between the two environments, especially in the amount of rainfall, Table 1. Between the first and second quadrant of the biplot of Figure 2 is another mega-environment where the only environment was HU-2016, for which the corn hybrid 32) XB-8010 was the ideal.

The other three mega-environments did not include any environment, probably because the seven environments manifested yield averages similar to a group of hybrids. The ideal hybrids in each of these mega-environments were: 5) 515×714, double-cross hybrid with the lowest yield (8.045 t ha-1) and genotypes 19) 739×737 and 10) 725×723, located in the last places of yield (with 8.069 and 8.555 t ha-1, respectively), together in a single mega-environment (Figure 2).

In general, in Figure 2 the hard yellow corn hybrids, located at the right vertices, are those with the highest grain yield (Dk-5005 and AG-01) and are intimately linked to adjacent environments. The localities were grouped into three of the six mega-environments. Hybrids located between quadrants II and III away from the lines of the localities showed poor yield performance, as they were far away from the localities.

The corn hybrids studied in the present work consistently had high positive scores in PC1, which means high production, and decreases in absolute scores of PC2 are indications of high stability. Similarly, environments with low absolute values in PC2 have more representativeness, and high positive evaluations in PC1 indicate greater discriminatory capacity of hybrids in terms of the main genotypic effect (Yan et al., 2011; 2016).

Conclusions

The hard yellow corn trilinear hybrids Dk-5005 and AG-01 were the most outstanding for their broad stability and adaptability in the genotype-environment interaction. The AMMI (additive main effects and multiplicative interaction) model is useful for understanding the genotype-environment interaction existing in grain yield and genotype discrimination. The application of SREG (regression sites) was highly effective compared to AMMI, allowing the identification of six mega-environments. The three environments of La Molina (LM-2016, LM-2017, LM-2018) and one of Huánuco (HU-2017) allowed the identification of the corn genotypes with the highest grain yields. The corn hybrid Dk-5005 had high stability and adaptability in four environments with a high average grain yield, being the most appropriate hybrid for grain production in the coastal and low sierra areas of Peru.
