Revista Mexicana Ciencias Agrícolas   volume 11   number 6   August 14 - September 27, 2020



MicMac structural analysis to determine the strategic variables
of the sugar agribusiness in Mexico

Antonio Villegas Vilchis

Diego Platas Rosado§

Felipe Gallardo-López

Gustavo López-Romero

Campus Veracruz-Postgraduate Program in Tropical Agroecosystems-Postgraduate College. Xalapa-Veracruz Highway 85.5 km, Predio Tepetates, Manlio Fabio Altamirano, Veracruz, Mexico. CP. 91690.

§Corresponding author:


The matrix analysis software MicMac (Matrice d’Impacts Croisés Multiplication Appliqués à un Classement) matrix multiplication applied to a classification, is a tool to organize a collective reflection. It offers the possibility of describing a system with the help of a matrix that relates all its constituent elements, based on this description, this method aims to determine the main influential and dependent variables. In this case, it was used to determine the essential variables that will define the future of the sugarcane agribusiness in Mexico. This analysis was carried out in 2019 by a group of experts with experience, a high level of knowledge and decision-making from the sugar cane agribusiness, who are part of the National Commission for the Sustainable Development of Sugar Cane (CONADESUCA). Five strategic variables of greater mobility and influence and of greater dependence were identified that will define the future of the sugarcane agroindustry in Mexico: research, development, innovation and technology transfer (R+D+I+TT), diversification, production costs, productivity and competitiveness. By logical order, they define that as long as the sugarcane agribusiness in Mexico obtains or adopts and uses intelligent technologies (research plus development plus innovation plus technology transfer), diversify and offer products derived from sugarcane at competitive prices, then it will be able to increase your productivity, lower your production costs and as a consequence you will be more competitive. Failing to take these recommendations, the sugar cane agribusiness will not be competitive, becoming increasingly obsolete and will tend to disappear.

Keywords: collective reflection, CONADESUCA, relational matrix.

Reception date: June 2020

Acceptance date: August 2020


The sugar agribusiness in Mexico is a productive activity with a high social, economic and spatial impact. The 6th Statistical Report of the Agroindustrial Sector of Sugar Cane in Mexico, harvests 2009-2010-2018-2019 CONADESUCA, reports that sugar production in the 2018-2019 harvest was 6.4 million tons, from a milling of 57 million tons of crude cane, with an industrialized surface of 804 060 ha, reported from the 50 mills that are currently in operation, distributed in 15 states and 227 municipalities in the country, reaching a field yield of 70.94 t ha-1. It generates 440 thousand direct jobs and has an indirect socioeconomic effect on around 12 million people, with contributions in manufacturing gross domestic product (GDP) of 2.1%, in agriculture of 8.6% and national of 0.35% (CONADESUCA, 2019).

Despite the importance of this agro-industry, in recent years numerous factors threaten its competitiveness, for example: the Mexican sugar industry is not recognized as competitive mainly due to stagnation of cane, low yield of sucrose, high fiber in stems per hectare and variability in the production process.

Average sugar cane yields range from 60 to 70 t ha-1. The decrease in agricultural production of sugar cane has been defined as the loss of productive capacity of the monoculture sugar cane soils in the long term (Aguilar, 2012).

The drastic fall in international sugar prices can also be explained by the accumulation of final sugar inventories worldwide, coupled with the substitution of this sweetener in recent years by others such as high-fructose corn syrups (HFCS) (Morcillo, 1997). Sugar production in Mexico has been seriously affected by combining on one hand the severe internal crisis both in the field and in industry with the collapse of the international sweet market (Zavala, 2015).

The sugar agribusiness is currently facing changes in consumption patterns due to health issues. Mexico occupies the first place in soft drink consumption (Caravali et al., 2016) and consequently the first place in diabetes (Moreno et al., 2014) and an increasing substitution and consolidation of other sweeteners such as high-fructose corn syrup (HFCS) which is 1.5 times sweeter than sugar and cheaper. The soft drink industry used 3.5 million tons as a sweetener that is being replaced by HFCS, which means a reduction of approximately half of the current sugar production, which is 6.4 million tons.

Faced with this problem, there is a need for new technologies that guarantee, among other things, food security in this basic carbohydrate, increased productivity and its challenges in the face of climate change, as well as the efficient use of natural inputs: water, soil, sun, wind, among others (Aguilar, 2014).

It is clear then that the sugar cane agribusiness needs to build a different future that responds to new demands. In this sense there are several philosophical, theoretical and methodological currents such as future studies and their two currents of thought: The North American determinist (Forecasting) where the future is unique and the French voluntarist (strategic prospective), (Berger, 1967), where the future is multiple (Jouvenel, 1964), supported by the complexity theory presented by (Morin, 1990). For this document the French (voluntarist) current was used. This current of future studies is based on the identification of possible or future futures to choose the most convenient and build it from the present. For the future, the future will happen to the extent that we prepare it through precise actions.

The prospective proposes that it is not necessary to suffer or suffer the future, but that it can be built and also shows that if it is analyzed, comparative advantages are acquired, simply because it is getting ahead of making decisions that others have not yet thought, in this way it is It is possible to win the lead and prevent being surprised by the future (Mojica, 2010).

The structural analysis (MicMac) has been used in different areas of knowledge, in higher education (Benjumea et al., 2016), ecotourism (Ariyani and Fauzi, 2019), solar energy in the rural sector (Sindhu et al., 2016), development of the agricultural system (Barati et al., 2019), transformation of a smart city in India (Kumar et al., 2019), among other areas.

In this work, the MicMac software that is part of the strategic foresight methodology of Ph. D. Francisco Josó Mojica was applied, which is a combination of the two currents of thought of future studies (Mojica, 2008), with the purpose to present the results of the structural analysis through the MicMac, which aims to identify the strategic variables that can counteract a defined trend and establish the future that the sugar sector will face later.

Materials and methods

The structural analysis (MicMac) was carried out at the facilities of the National Commission for the Sustainable Development of Sugar Cane (CONADESUCA), in Mexico City in July 2019. By a group of experts with experience, a high level of knowledge and decision-making of the sugarcane agribusiness. Initially, the group of experts, through a group reflection, selected 65 factors of change, these are the phenomena with which it is possible to begin to draw the profile of the agro-industry of sugar cane.

Using the technique of analyzing preconceived ideas or stereotypes, as a result, a draft list of 65 factors of change divided into five dimensions (economic, social, environmental, political and technological) was prepared. When weighing the factors of change by relevance, the experts selected 25, by the scoring method assigned the number 25 to the most important and relevant factor of change for the sugarcane agribusiness and so on until reaching number 1. Analyzed the information in a table in Excel.

The structural analysis software that Michel Godet designed with the name of the MicMac method was used and is a contribution to the strategic prospective toolbox (Godet, 2007). This software allowed prioritizing the most relevant variables and obtaining their disposition within a context where these elements are articulated according to their causal relationships. Structural analysis is a systematic method, in a matrix form, of analysis of the relationships between the constituent variables of the studied system and those of its explanatory environment (Godet and Durance, 2011).

The objective of the structural analysis is collective reflection, it describes a system with the help of a matrix where they interact in a relationship with all the variables, which impact each other. The MicMac method consists in raising the structural analysis matrix to a power of successive values, in this way thousands and millions of lines are analyzed in the majority of concrete systems. The three phases that were carried out in the investigation of the MicMac method are described below.

Stage 1. Identification of variables

At this stage, the experts, through collective reflection, made a homogeneous list of internal and external variables that characterize the sugarcane agro-industry, answering the following question: what are the political, economic, technological, social and environmental factors that Will they determine the evolution of the sugarcane agribusiness? Obtaining from the 65 factors of change, 25 variables the most relevant and important.

Stage 2. Describe the relationships between the variables

In a systemic approach, one variable only exists; through its interrelation with other variables. In addition, structural analysis allows you to identify these relationships between variables using a two-input table called a structural analysis matrix. The experts rated the matrix, the filling was qualitative. For each pair of variables, the following question is asked: Is there a direct influence relationship between variable i and variable j? if the answer is negative, they wrote down 0, in the opposite case, they asked if this relation of direct influence is, weak they wrote down (1) median they wrote down (2); and strong scored (3). This interrogation procedure not only makes it possible to avoid mistakes, but also to order and classify ideas by creating a common language within the group of experts. In addition, it allows, in most cases, to redefine certain variables and consequently, refine the analysis of the system (Godet and Durance, 2007).

Stage 3. Identify the strategic variables

The identification of strategic variables, through the MicMac, was done first, through a direct classification, later by an indirect classification (called MicMac for cross-impact matrices, applied multiplication for a classification). This indirect classification is obtained after the potential elevation of the matrix. The comparison of the hierarchy of the variables in the different classifications (direct, indirect and potential) is a rich teaching process. This allows us to confirm the importance of certain variables, but it also allows us to reveal certain variables that, due to their indirect actions, play a main role that were not revealed in the direct classification.

In the interpretation of structural analysis two concepts converge: motor skills and dependency. Motor skills are the impact that one variable has on the others. Dependency is defined as the subordination of one variable with respect to the others.

The results in terms of influence and dependency of each variable are represented on a plane (the axis of abscissa corresponds to dependence and the axis of ordinates to influence). This cartesian plane allowed us to determine which are the most influential factors and which are the most dependent. The strategic or key variables are finally those that contain the highest ratings of influence and dependency.

Results and discussion

Expert connoisseurs of the sugarcane agribusiness with decision-making capacity chose 65 factors of change divided into five dimensions (Tables 1, 2, 3, 4 and 5).

Table 1. Change factors of the economic dimension.

Economic phenomena


Competitiveness (substitutes, quality and prices)


Market (production chain)


Productivity (field and factory)


Production costs (field and factory)


Diversification (by-products, co-products)


International sugar prices (by-products, co-products)


Transportation costs




Financial resources (economic return)






Low yields (field and factory)


Infrastructure (Efficiency of mills)


Input price


Highly productive field management


Budget for Conadesuca


Suspension agreements


Nutritional labeling


Raw material payment system


Competition with other crops

Table 2. Change factors of the social dimension.

Social phenomena


Education (basic, middle and higher)




Social welfare (low income) (producer)


Implementation of services


Social responsibility (factory and field)


Social Security


Poverty and marginalization indices


Cutters situation


Equity and gender


Child labor




Field unionization


Negative campaigns on cane sugar

Table 3. Change factors of the environmental dimension.

Environmental phenomena




Energy (cogeneration of energy)


Climate change


Land use (soil degradation)


Organic products


Pollution (soil, water and air) (field and factory)


Water management (field and factory)


Good farming practices


2030 Agenda

Table 4. Change factors of the political dimension.

Political phenomena


Regulatory framework


Union organizations impact (factory)


Differentiated inclusive public policies


New institutional arrangement


Impact cane organizations (field, free cane)


Bargaining power (alliances)


Trade Agreement (T-MEC)




Informality in contractual relationships


Executive-legislative relationship


Law of Sustainable Development of Sugar Cane

Table 5. Change factors of the technological dimension.

Technological phenomena


Research, development and innovation technology transfer (R + D + I + TT)


Connectivity (communications) (roads)


Equipment (factory, field and market)


Automation (factory and market)


Precision agriculture (sensors, drones)


Training (factory, field and market)


Information technologies (Internet of things, Big Data)


Emerging technologies (biotechnology, nanotechnology)


Information platform




Technology adaptability


Research infrastructure (experimental field)

As a result of the collective reflection made by the experts in Table 6, the 25 most relevant and important variables that determine the future of the sugarcane agroindustry are shown, along with its abbreviation that was used in the matrix for its analysis. These represent the social, political, economic, environmental and technological phenomena of the environment of the sugarcane agro-industry.

Table 6. Most relevant and important variables of the sugarcane agribusiness in Mexico, with its abbreviation used in the matrix.

Change factors


Research, development and innovation and technology transfer (R + D + I + TT)


Diversification (DIVERSIFIC)


Competitiveness (COMPETITIVE)


Market (MARKET)


Law of Sustainable Development of Sugar Cane (LDSCA-SANC)


Precision agriculture (AGRIC-PREC)


Production costs (COSTS-PROD)


Contamination (CONTAMINAC)


Highly productive field management (ORDER-TERR)


Productivity (PRODUCTIVI)


Sustainability (SUSTAINABI)


Emerging technologies (TECNOL-EME)


Information technologies (TECNOL-INF)


Research infrastructure (INFRA-INVE)


Trade Agreement (T-MEC)


Automation (AUTOMATIZA)


Climate change (CAMB-CLIMA)


Public policies (POLIT-PUBL)


Infrastructure (INFRAESTRU)


Globalization (GLOBALIAZA)


International sugar prices (PREC-INTE


Nutritional labeling (ETIQ-NUTRI)


Raw material payment system (SIST-PAG-M)


Water management (WATER-MANAGEMENT)


Regulatory framework (MARC-NORMA)

From this list of variables, a logical structure of causality was sought, verifying the influence that one of the phenomena has on others, with this effect a structural analysis was performed, a technique proposed under the name of MicMac that allows configuring a perception systemic grouping the factors into three levels, according to the way in which some influence others. For this, a double-entry matrix was generated showing the ratings that the experts made under the criteria of the following question: Is there a direct influence relationship between variable i and variable j? if the answer is negative, they wrote down 0, in the opposite case, they asked themselves if this relation of direct influence is, weak they wrote down (1) median they wrote down (2) and strong they wrote down (3) (Figure 1).

Figure 1. Matrix of expert ratings for factors of change.

With the MicMac software, the strategic variables were identified. In this phase the essential variables for the development of the system are obtained initially, it is carried out through an indirect classification (MicMac or Matrice d’ Impacts Croisés Multiplication Appliqués à un Classement). This indirect classification is obtained after increasing the power of the matrix. Compare the hierarchy of variables in the different rankings (direct, indirect, potential). This analysis confirmed how important some variables are and revealed the variables that play a more dominant role, given their indirect action, something that did not appear in the direct classification.

In the interpretation of structural analysis two concepts converge: motor skills and dependency. Motor skills are the impact that one variable has on the others. Dependency is defined as the subordination of one variable with respect to the others. Based on these two principles, the influence and dependence of each variable are represented on a plane (the abscissa axis corresponds to dependence and the ordinate axis to influence). The most influential and most dependent variables are chosen as strategic variables (Figure 2).

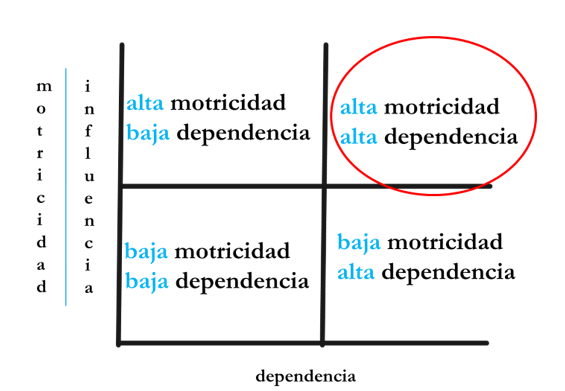

Figure 2. Dependency influence plane to choose the strategic variables.

At this moment, we can already speak of strategic variables, assuming that one variable is a phenomenon that is modified by virtue of another. In (Figure 3) the red variables with the highest values in influence and dependence can be seen in the red circle. A Pareto of 20% of the 25 initial variables was selected and the five strategic variables that will serve as a prop and support to carry out the exploration of the future of the sugarcane agribusiness were defined.

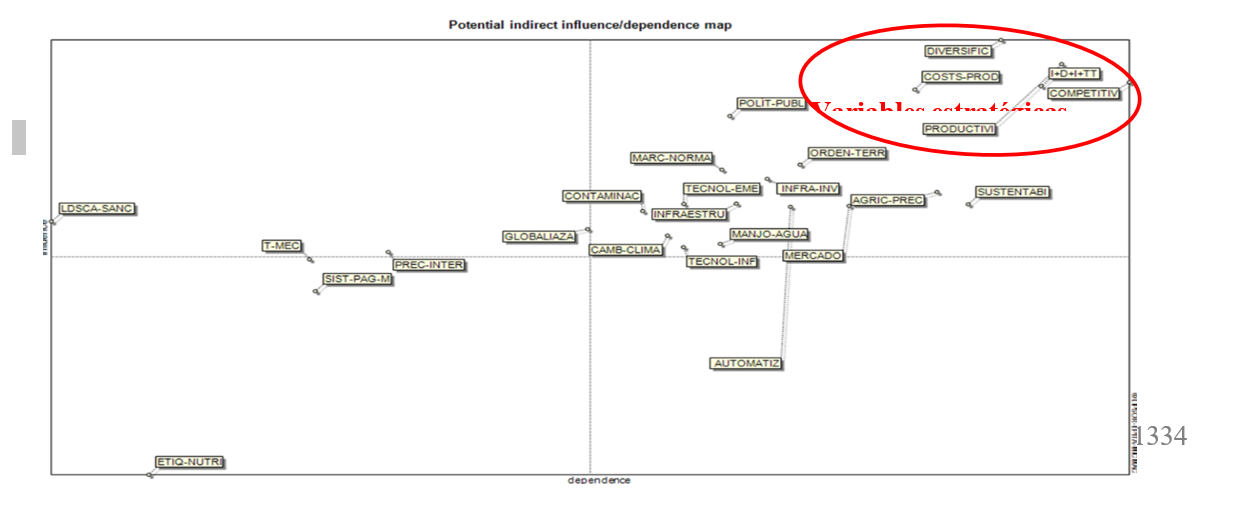

Figure 3. MicMac analysis result.

The results obtained through different classifications (direct, indirect, potential, dependency and classification), give a great variety of information and possibility of analysis, which allow the researcher to reflect on the functionality of the system (Veronica et al., 2014). The variables with the highest causality, which are found in the upper left quadrant and included in the circle, correspond to phenomena of very high importance for the life of the sugarcane agro-industry, they are: competitiveness, productivity, diversification, research plus development plus innovation plus technology transfer (R + D + I + TT) and production costs.

These variables that have been determined as strategic deserve to be read forming a systemic context of causality formed by themselves (Figure 4), in order to respect the principles of contextuality and complexity on which the strategic prospective rests. These conditions can be observed in the logical scheme of the strategic variables ordered according to the interrelationships of cause and effect, which appears below constituting a whole within which its elements are solidary and interdependent.

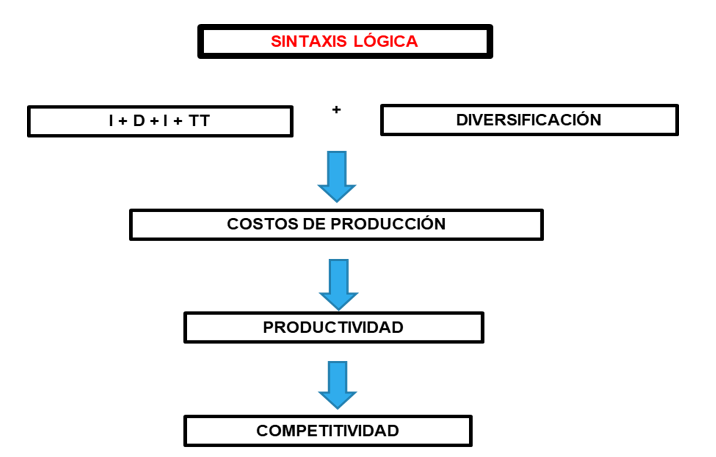

Figure 4. Logical syntax of the strategic variables.


It is vitally important since the experts are chosen, they really have experience, a high level of knowledge and decision-making, the MicMac being a mixed quantitative and qualitative method, which allows the decision maker to establish what those variables are that by its influence affect the entire system and based on this take the appropriate actions. This analysis also allowed comparing and confirming the importance of some variables over others, with the aim of planning in the future, thereby avoiding eliminating risks.

The MicMac software structural analysis identified five strategic variables according to their influence and dependence that defines the exploration of the future of the sugarcane agribusiness, these through their logical order define that while the sugarcane agribusiness in Mexico obtains or adopt and use smart technologies (research plus development plus innovation plus technology transfer), diversify and offer products derived from sugar cane at competitive prices, then you will be able to increase your productivity, lower your production costs and as a consequence you will be more competitive.

Failing to take these recommendations, the sugar cane agribusiness will not be competitive, becoming increasingly obsolete and will tend to disappear. The reading and interpretation of the results will be of utmost importance for the reflection of the studied system, as well as for decision-making based on the generation of information released by the MicMac.

Cited literature

Aguilar, R. 2014. Reconversión de la cadena agroindustrial de la caña de azúcar en Veracruz México. Nova scientia. 6(12):125-161.

Aguilar, R. N. 2012. Paradigma de la diversificación de la agroindustria azucarera de México. Convergencia. 19(59):187-213.

Ariyani, N. y Fauzi A. 2019. Analysis of strategic variables for ecotourism development; an application of Micmac. South Asian Journal of Social Studies and Economics. 3(3):1-12.

Barati, A. A.; Azadi, H.; Dehghani Pour, M.; Lebailly, P. and Qafori, M. 2019. Determining key agricultural strategic factors using AHP-MICMAC. Sustainability. 11(14):1-17.

Benjumea, A.; Martha, L.; Castañeda, A. y Valencia, A. 2016. Structural analysis of strategic variables through micmac use: Case study. Mediterranean J. Soc. Sci. 7(4):11-19.

Berger, G. 1967. Etapes de la prospective. PUF. París.

Caravalí, M.; Nuris,Y.; Jiménez, C.; Arturo, G. y Bacardí, M. 2016. Estudio prospectivo sobre el efecto del consumo de bebidas azucaradas sobre la obesidad en un periodo de 12 meses en mexicanos de 15 a 19 años. Nutrición Hospitalaria. 33(2):270-276.

CONADESUCA. 2019. 6to Informe Estadístico del Sector Agroindustrial de la Caña de Azúcar en México, zafras 2009-2010-2018-2019. SADER. México. 125 p.

Godet, M. 2007. Prospectiva  Estratégica: problemas  y  métodos.  Cuaderno de LIPSOR 20. 105 p.

Godet, M. y Durance, P. 2007. Prospectiva estratégica: problemas y métodos. Cuaderno 20. Segunda Edición de LIPSOR 104:1-105.

Godet, M. y P. Durance. 2011. La prospective stratégique-2e éd.: Pour les entreprises et les territoires. Dunod.

Jouvenel, B. D. 1964. El arte de la conjetura. Editions du Rocher; 1St Edition. París, Francia.

Kumar, H.; Singh, M. K. and Gupta, M. 2019. A policy framework for city eligibility analysis: TISM and fuzzy MICMAC-weighted approach to select a city for smart city transformation in India. Land use policy. 82:375-390.

Mojica, F. 2010. Introducción a la prospectiva estratégica para la competitividad empresarial. Programa Bogotá Emprende de la Cámara de Comercio de Bogotá. 1-49 pp.

Mojica, F. J. 2008. Dos modelos de la escuela voluntarista de prospectiva estratégica. Centro de pensamiento estratégico y prospectiva. Universidad Externado de Colombia: 1-11 pp. http://Franciscomojica.Com/Index.Htm.

Morcillo, P. 1997. Dirección estratégica de la tecnología e innovación: un enfoque de competencias. Madrid. Civitas. 254 p.

Moreno, A. L. G. García, J. J.; Soto, E.; Capraro, G. S. y Limón, C. D. 2014. Epidemiología y determinantes sociales asociados a la obesidad y la diabetes tipo 2 en México. Rev. Médica del Hospital General de México. 7783):114-123.

Morín, E. 1990. Introduction à la pensée complexe. Editions du Seuil. Paris. 158 p.

Sindhu, S.; Nehra,V. and Luthra, S. 2016. Identification and analysis of barriers in implementation of solar energy in Indian rural sector using integrated ISM and fuzzy MICMAC approach. Renewable and Sustainable Energy Reviews. 62:70-88.

Verónica, X.; Arango, M.; Pérez, A. y Cuevas. 2014. Método de análisis estructural: matriz de impactos cruzados multiplicación aplicada a una clasificación (MICMAC). 1-25 p.

Zavala, Y. C. 2015. Opciones biotecnológicas para la crisis de la agroindustria azucarera: melazas y proteína unicelular. Sociológica México. 6(16):183-211.
